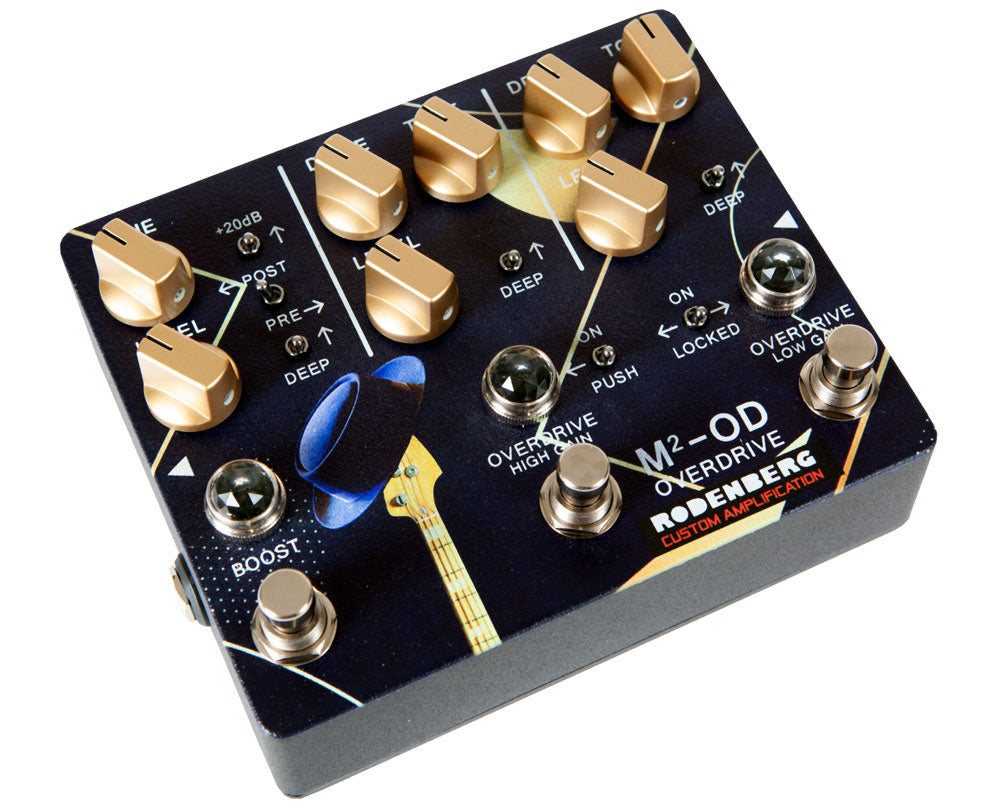

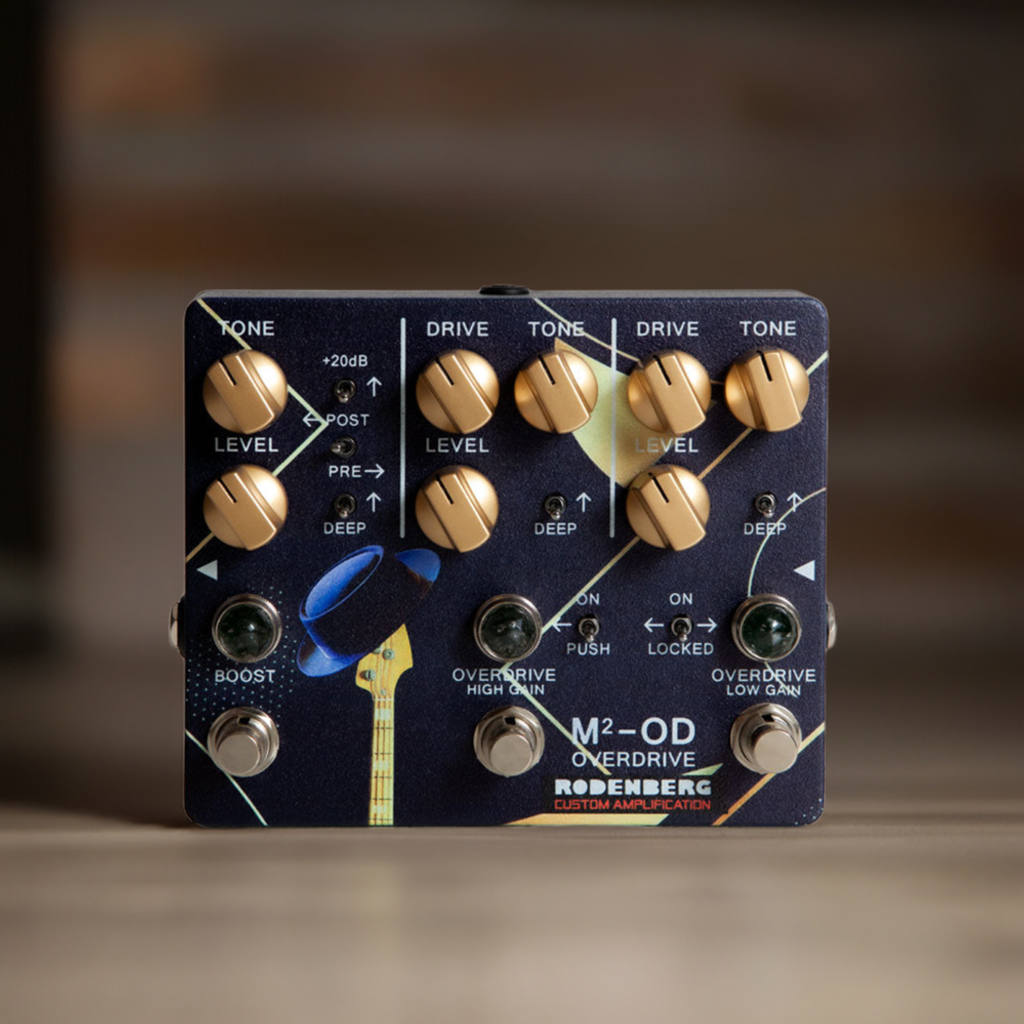

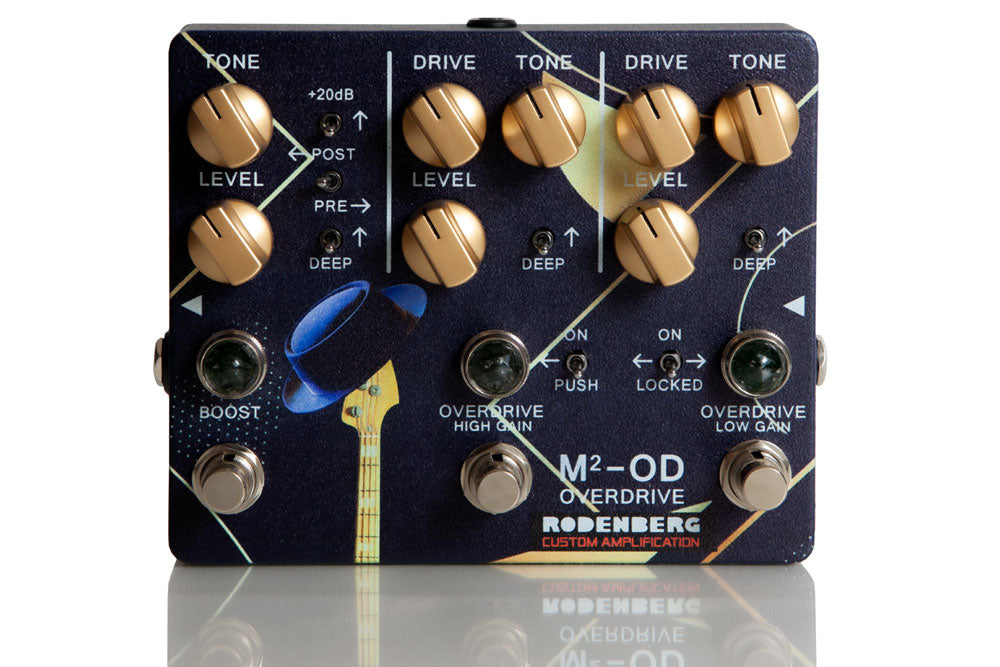

Rodenberg M2-OD Overdrive for Bass Sound Design by Marcus Miller and Uli Rodenberg

Sound Design by Marcus Miller and Uli Rodenberg
Three completely separate custom pedals in one box: Low Gain overdrive, High Gain overdrive, Boost (Clean boost)
Low gain overdrive with toggle switch for Deep Boost
Controls: Level, Tone, Drive
High Gain Overdrive mit Kippschalter für Deep Boost
Controls: Level, Tone, Drive
Boost (Clean Boost) with 2 toggle switches for Deep Boost and +20dB Level Boost
Controls: Level, Tone
Pre/Post toggle switch for changing the signal path
Post: Signal chain: Bass => Overdrive => Distortion => Boost (Clean Boost) => Amplifier
Pre: Signal chain: Bass => Boost (Clean Boost) => Overdrive => Distortion => Amplifier
Locked toggle switch: Locking of both overdrive low gain and high gain
Push toggle switch: Switches the High Gain Overdrive to momentary operation, the HG Overdrive is only ON as long as it is pressed.
This also works in conjunction with the Locked mode!
Footswitch: Mechanical True Bypass, (almost) no switching noise, new circuit design
Jewel LED: Low Gain Overdrive = Blue, High Gain Overdrive = Red, Boost (Clean Boost) = Green
Input and output: 6.3 mm jack
Black powder-coated aluminum box

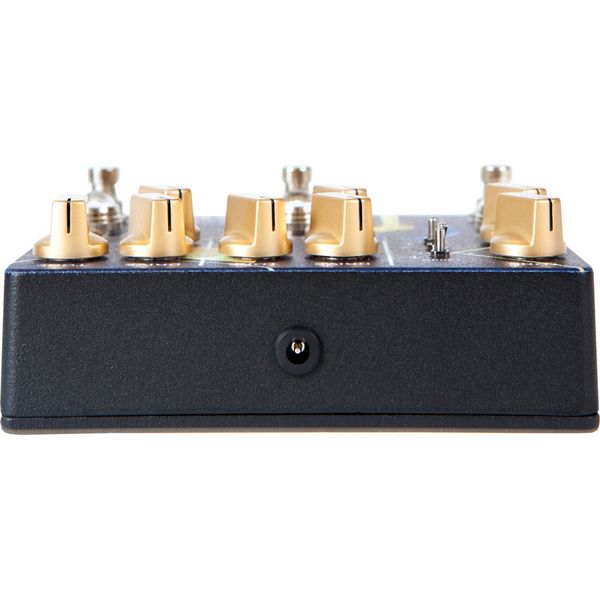

Power supply via 9-18 V power supply unit (not included, no battery operation)
Handcrafted in small quantities
Handmade in Germany
