DemonFx Ts Breaker Overdrive Electric Guitar Pedal
DemonFx Ts Breaker Overdrive Electric Guitar Pedal
Regular price
$58.50 USD
Regular price
$65.00 USD
Sale price
$58.50 USD
Unit price
/
per
Tax included.
Couldn't load pickup availability

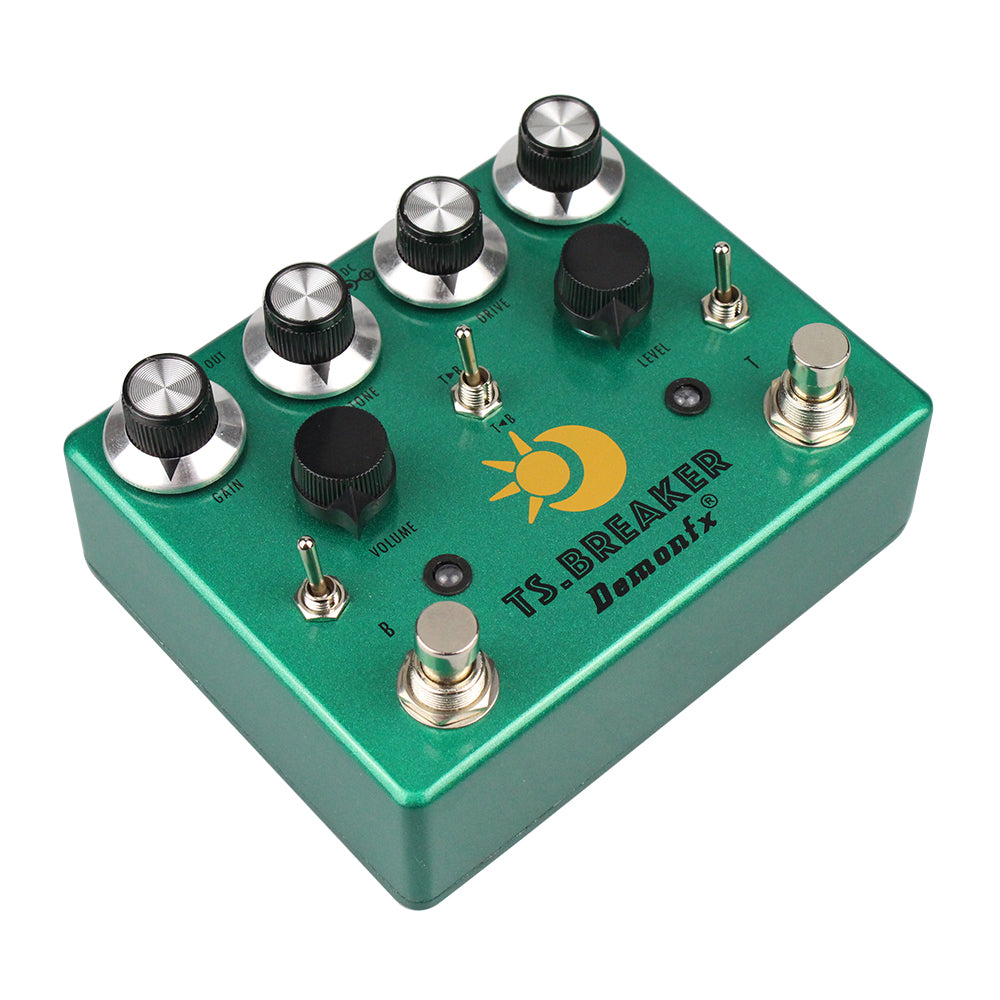

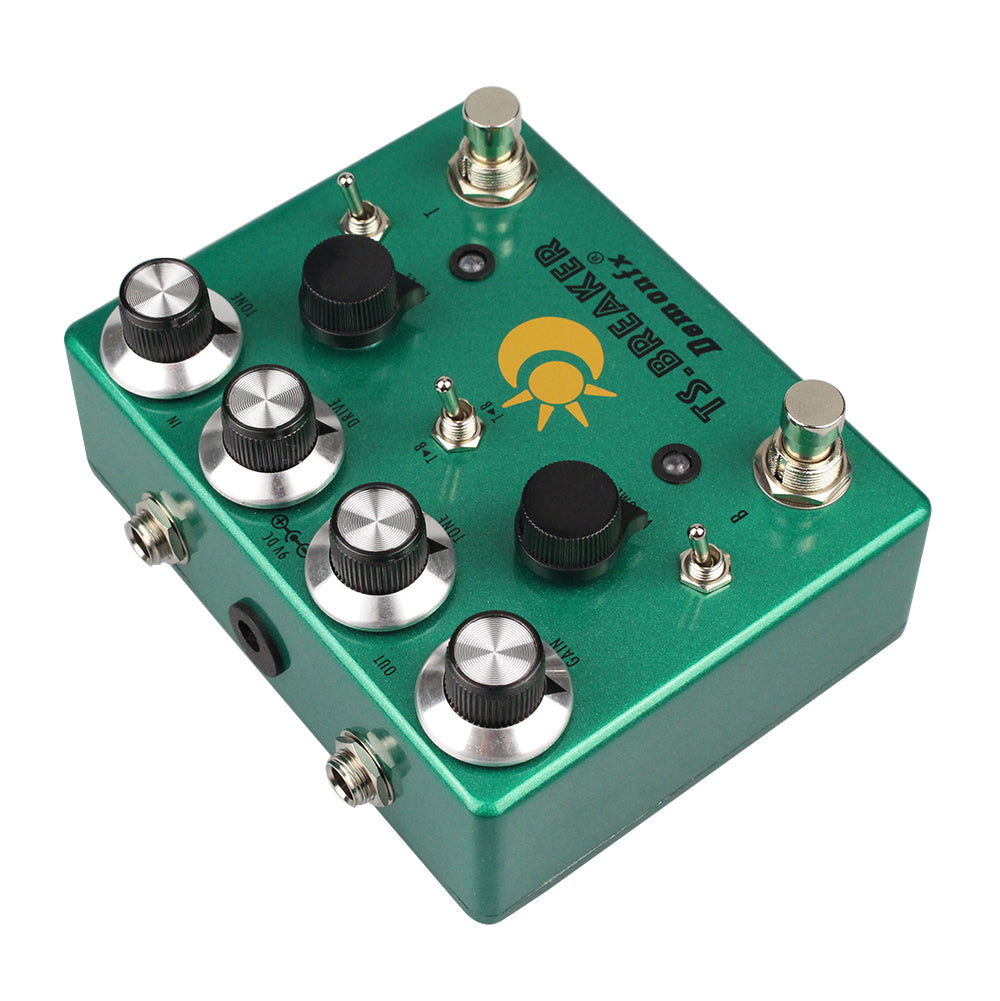

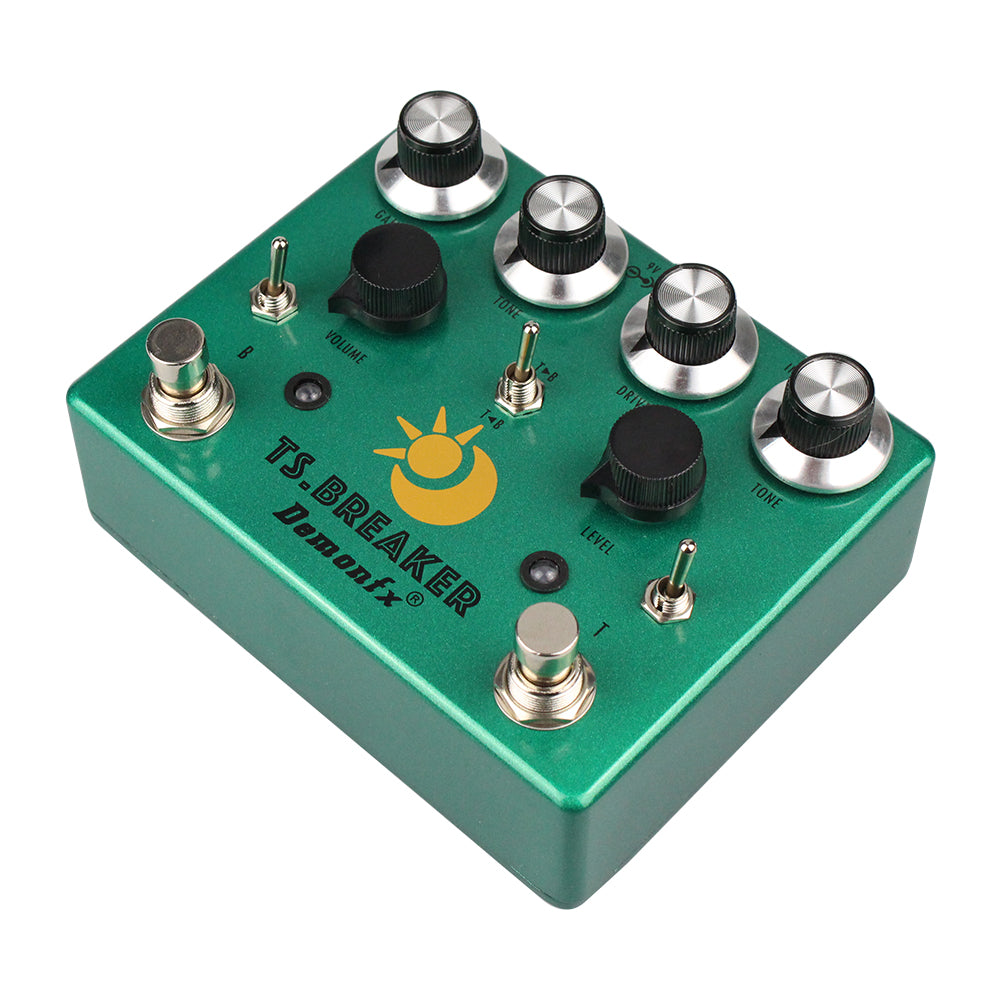

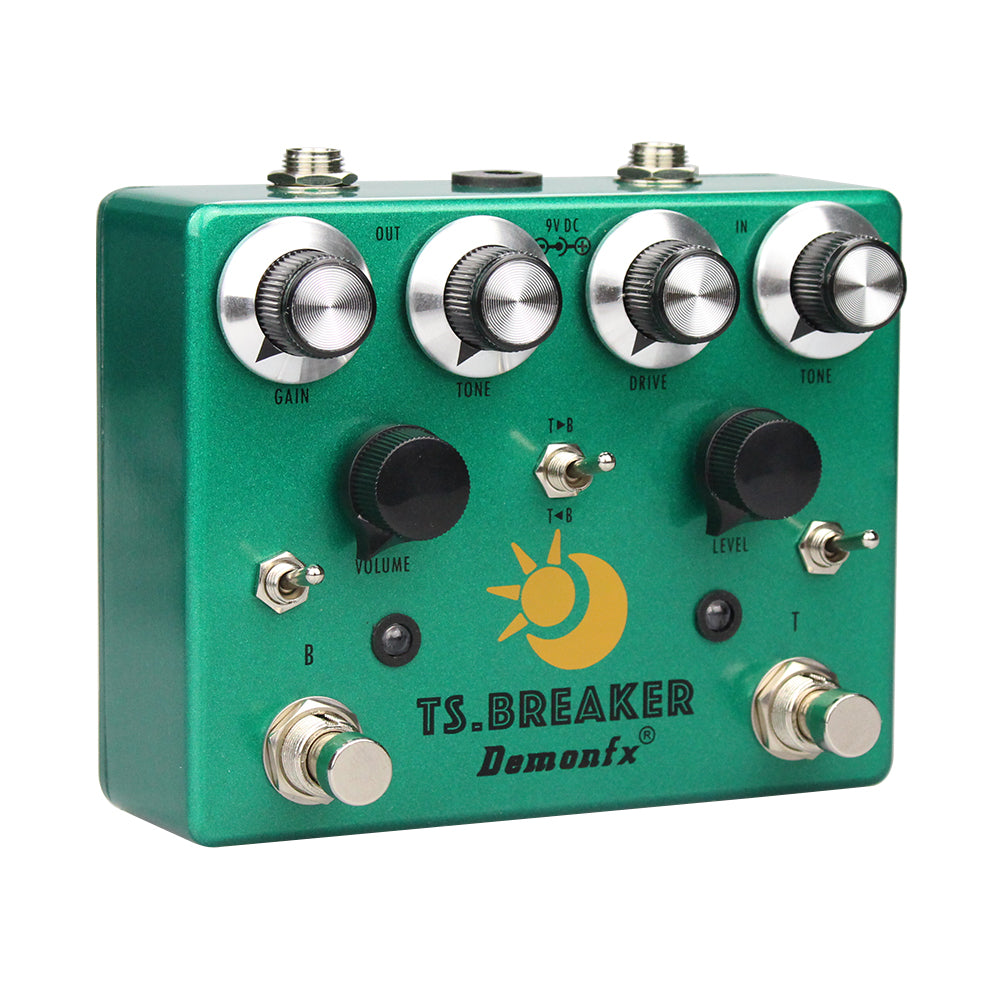

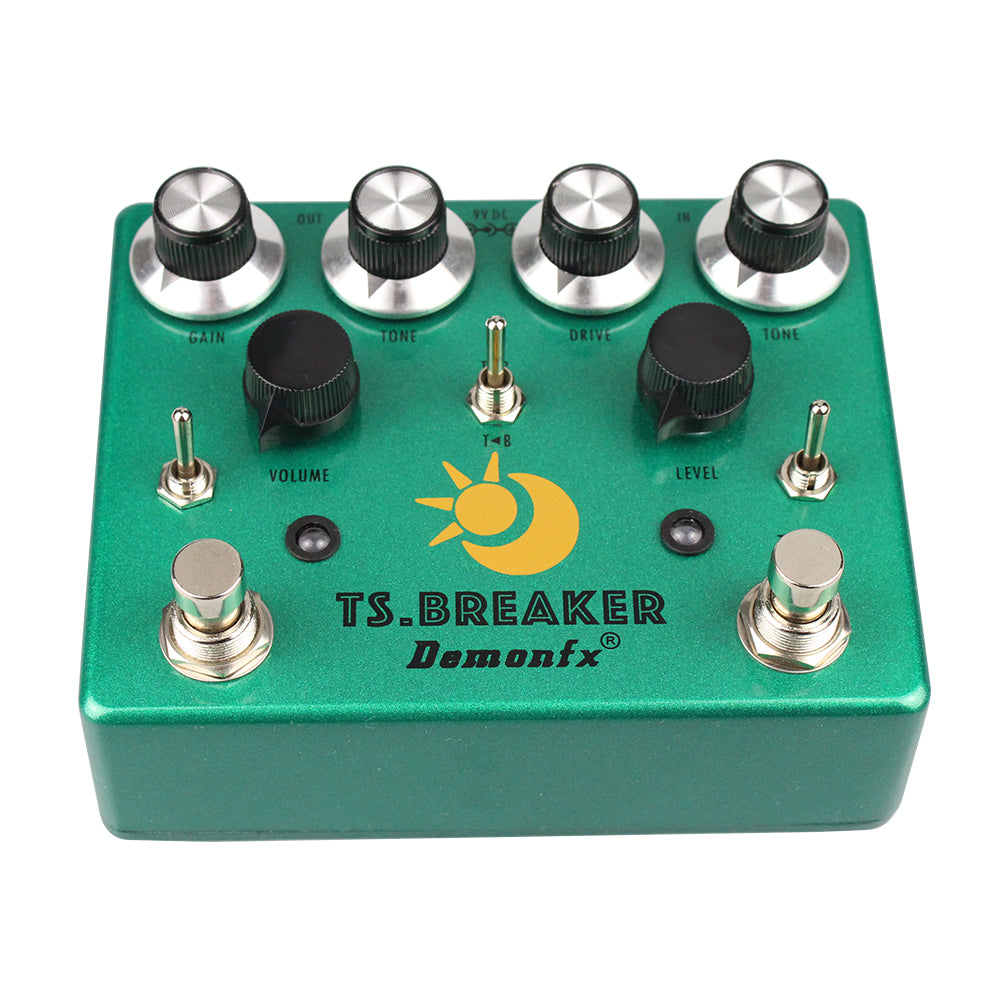

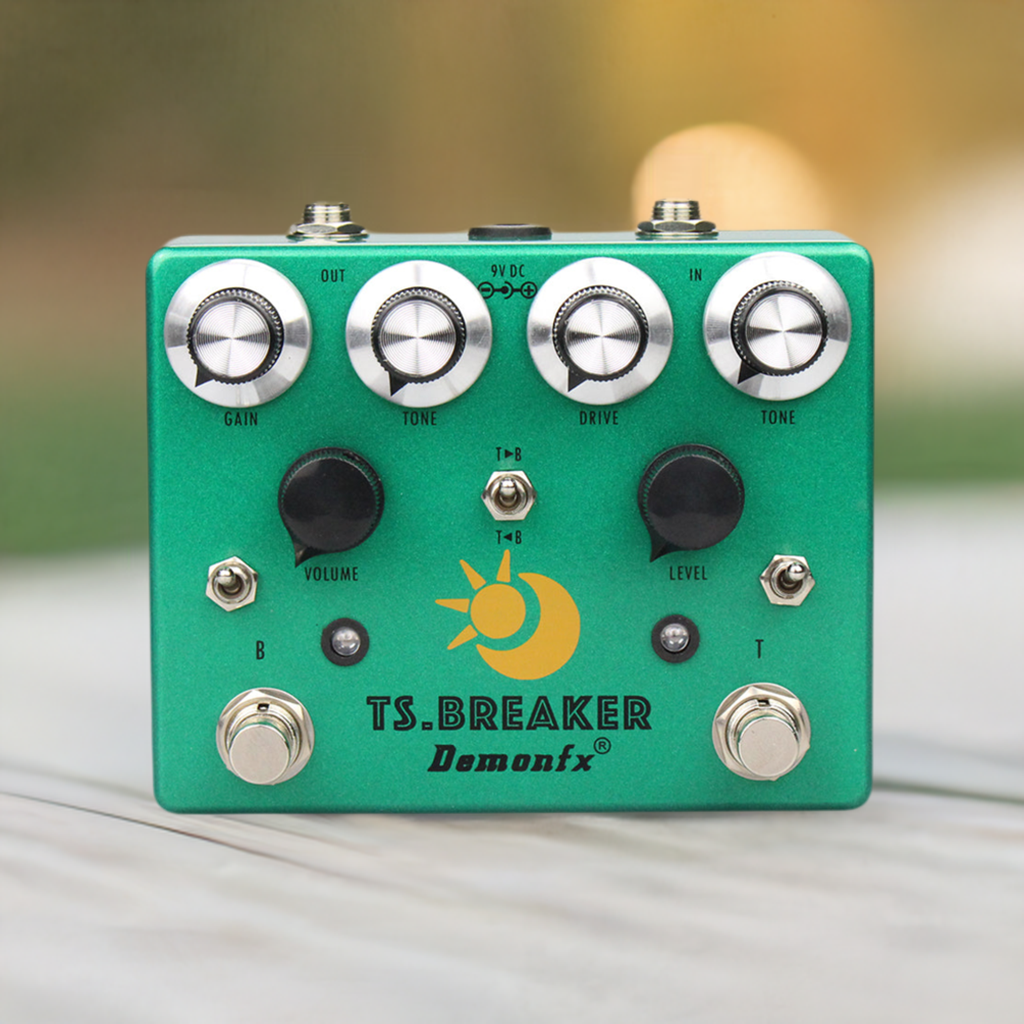

TS.BREAKER is a dual overdrive guitar pedal and the ultimate tone machine, providing a variety of delicious tones. It can be used as an always on drive tone all the way to a mid boosting lead tone. Our take on the legendary TS9 Tube Screamer-style overdrive and the Black Box Bluesbreaker, it features two independent overdrives, giving you two classic drive sounds favored by many guitarists in one enclosure.

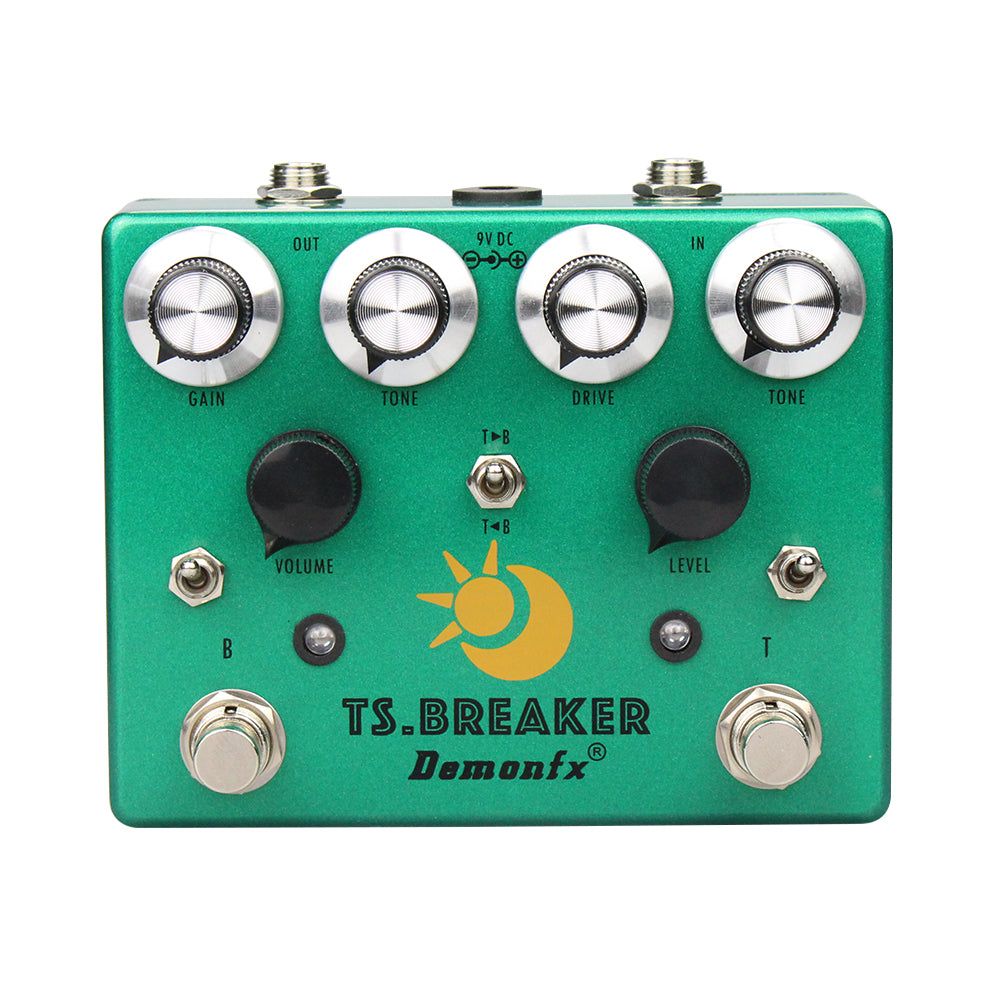

The TS.BREAKER is divided into a side Bluesbreaker(left) and a side TS9 (right), separated by the order toggle switch in the middle which flips the internal order of the effects and hence the signal path from guitar to amp.
Side B features the Bluesbreaker-style circuit with external knobs for GAIN, TONE, VOLUME and a two position toggle switch labeled CLIPPING. The clipping switch toggles between Two Clipping models soft and hard .
The side T features the TS9-style circuit with external knobs for DRIVE, TONE, LEVEL and a two position toggle switch labeled CLIPPING. The clipping switch toggles between Two Clipping models .
Both sides can be used separately or stacked.

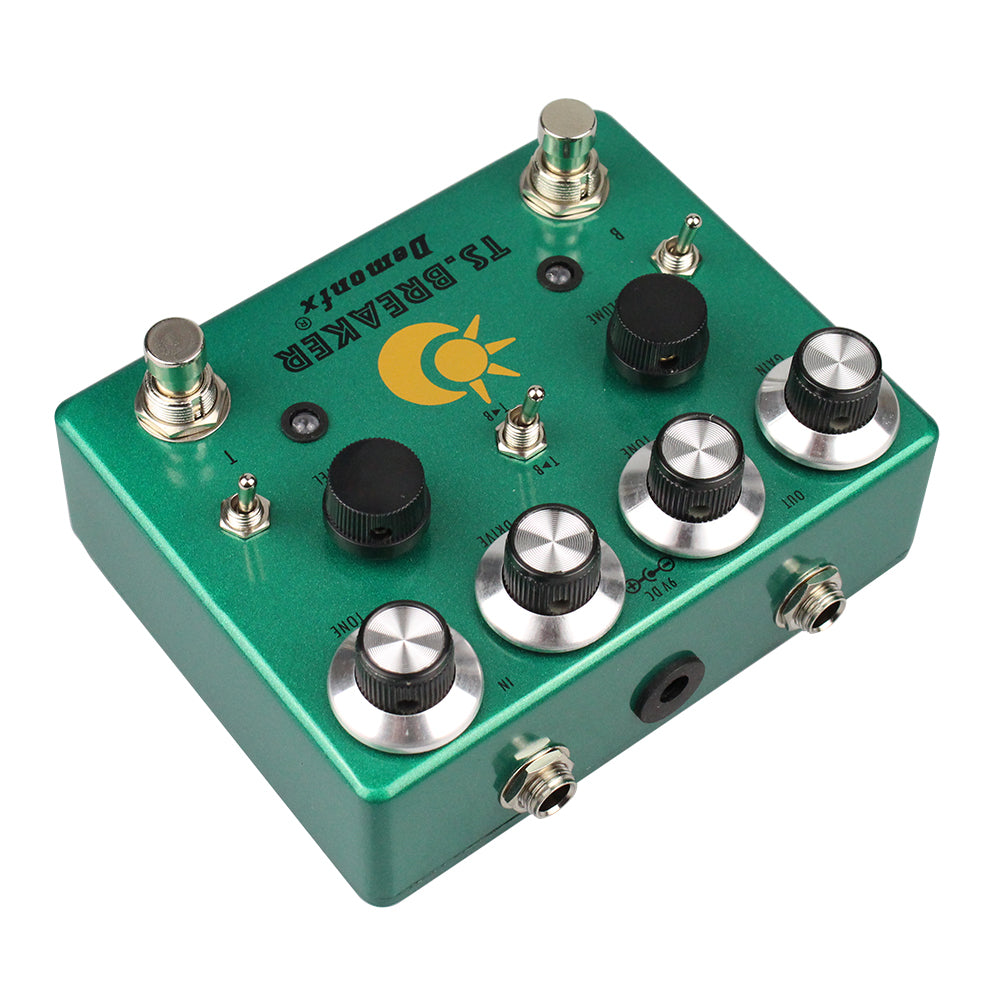

TRS split: Besides using the two sides of 'TS.BREAKER in serial mode, either T->B or T<-B, . The two 1/4" jacks, which in serial mode are used for signal in and out, will in split mode serve as IN+OUT for each side.
PLEASE NOTE THAT THE EXTERNAL ORDER TOGGLE SWITCH MUST BE IN UP POSITION T <- B
Features:
Side B (left)
- Replica of the circuit of the first BB1 - Black Box Blues Breaker circuit.
- External two position clipping toggle switch for two models clipping response
Side T (Right)
- Exact replica of the TS9 -circuit.
- External two position Clipping switch to switch between a pair of si - or a pair of led clipping diodes in the overdrive gain stage.
External switch to choose in which order the signal passes through the two circuits.
- Dimension:
115 mm x 95 mm x 35 mm
POWER:
The TS.BREAKER requires a regulated 9-volt DC power supply with standard 2.1mm jack tip negative polarity. (not included)
The max power consumption of the is 100mA (+9VDC). If operated with a power supply with insufficient current
capabilities, it will affect the performance. So make sure your +9V-DC power supply is capable of delivering 100mA.
We recommend you to use a quality power supply with isolated outputs.
The TS.BREAKER is divided into a side Bluesbreaker(left) and a side TS9 (right), separated by the order toggle switch in the middle which flips the internal order of the effects and hence the signal path from guitar to amp.
Side B features the Bluesbreaker-style circuit with external knobs for GAIN, TONE, VOLUME and a two position toggle switch labeled CLIPPING. The clipping switch toggles between Two Clipping models soft and hard .
The side T features the TS9-style circuit with external knobs for DRIVE, TONE, LEVEL and a two position toggle switch labeled CLIPPING. The clipping switch toggles between Two Clipping models .
Both sides can be used separately or stacked.
TRS split: Besides using the two sides of 'TS.BREAKER in serial mode, either T->B or T<-B, . The two 1/4" jacks, which in serial mode are used for signal in and out, will in split mode serve as IN+OUT for each side.
PLEASE NOTE THAT THE EXTERNAL ORDER TOGGLE SWITCH MUST BE IN UP POSITION T <- B
Features:
Side B (left)
- Replica of the circuit of the first BB1 - Black Box Blues Breaker circuit.
- External two position clipping toggle switch for two models clipping response
Side T (Right)
- Exact replica of the TS9 -circuit.
- External two position Clipping switch to switch between a pair of si - or a pair of led clipping diodes in the overdrive gain stage.
External switch to choose in which order the signal passes through the two circuits.
- Dimension:
115 mm x 95 mm x 35 mm
POWER:
The TS.BREAKER requires a regulated 9-volt DC power supply with standard 2.1mm jack tip negative polarity. (not included)
The max power consumption of the is 100mA (+9VDC). If operated with a power supply with insufficient current
capabilities, it will affect the performance. So make sure your +9V-DC power supply is capable of delivering 100mA.
We recommend you to use a quality power supply with isolated outputs.
