DemonFx CK Compressor Electric Guitar Pedal

The CK COMPRESSOR Based on Keeley c4 compressor
The CK is a boutique compressor that can add some vintage-sounding push and squash to your sound.
it’s no-nonsense design, you can easily tweak your perfect sound with 4 essential controls.
this compressor adds definition and a transparent musical squeeze to your sound unlike any other.
This pedal also features True Bypass switching, meaning that your guitar sound is retained when the pedal is off
(although this isn’t something you’d turn off very often - it’s that good!)
The pedal have included only the most necessary controls to give you an easy to use pedal with many applications
This amazing pedal is designed and built by handmade and using the best quality components and using theplug-in components .
The Sustain Control
The 9 O’clock position should be barely noticeable. It will just take out really loud sudden peaks, this is great for protecting your
speakers and the like. The 12 O’clock position
provides the right presence for using the compressor pedal continuously while performing.
The 3 O’clock position is great for solos. It really adds some cool effects to your playing dynamics.
Only when really cranked do you get the pluck sound of your pick emphasized.
Attack Control
The compressor pedal has an Internal Attack control, designed for bass players with high-output active pickups or active pedal
boards with buffers.
Clipping Control
The compressor pedal also has an Input Sensitivity Control, meaning you can use this in your studio to run keyboards, drum machines,
drum mics, even master recordings and other line-level uses.
You’ll raise your signal to a new level of sonic awesomeness.
True-Bypass Switching Circuit
True bypass means that when the effect is off your guitar tone will not be affected at all. The true bypass circuit makes sure you have
absolutely no tone loss or signal reduction
through the compressor pedal in the off/bypass mode. This switch makes sure you have absolutely no tone loss or signal reduction
through the 4-knob compressor even in the off mode. Other compressors use a cheap switch and design that runs down your
signal even when off or if the battery goes weak.

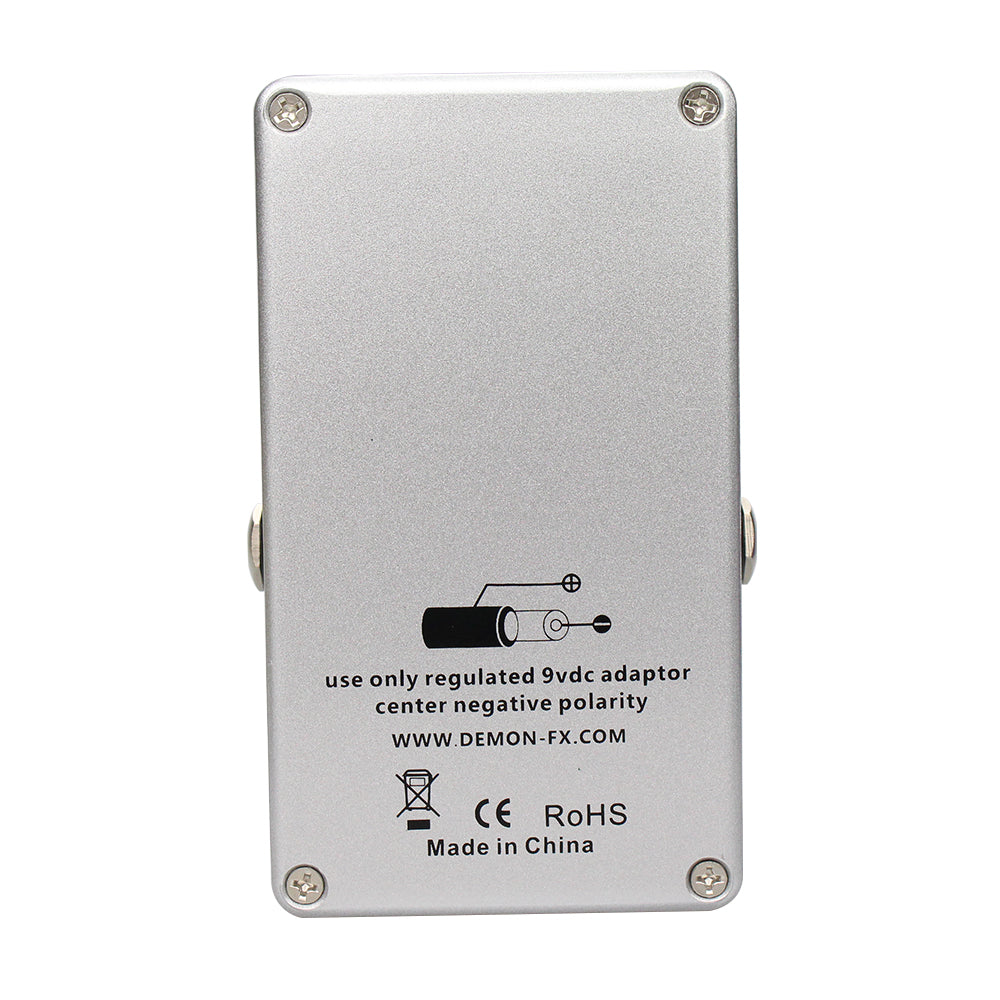

Power supply
The DC jack is the standard type fitting just about every power supply out there

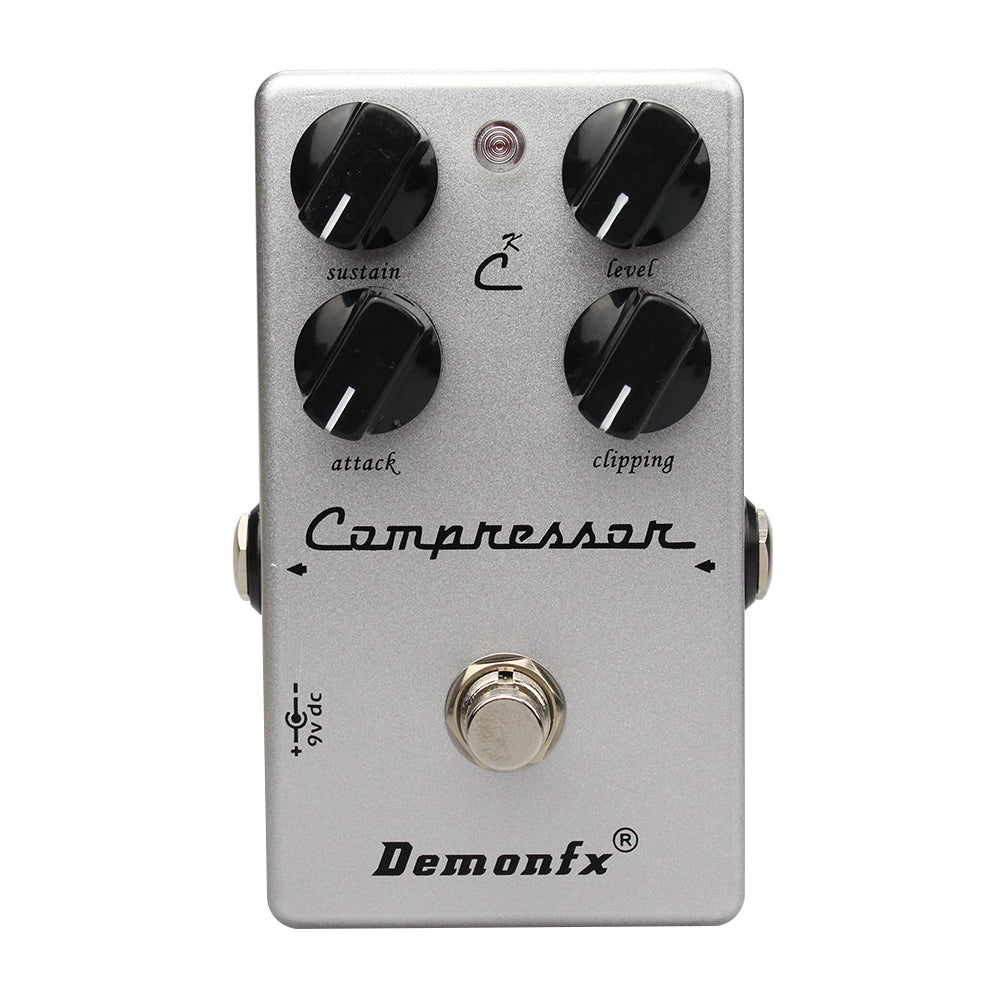

Panel Instruction
SUSTAIN:
Adjusts the compression ratio and increases SUSTAIN.
This is the main control of your compression effect.
This will limit or "squash"your signal the harder you play.
As your signal decays it will increase volume to create
longer sustain.NOTE:Higher sustain settings will lead to
noise when not paying.
ATTACK:
Adjusts how fast the compressor recovers from louder
signals.Faster attack times (right) benefit players using
higher output instruments with active or humbucking pickups.
Turn left when using lower output pickups for nice compression
bloom.
LEVEL:
Adjusts the final output level of the compressor.
Set to unity to compensate for gainlost from compression .
Or turn it up higher for a boost effect.
CLIPPING:
This control limits the amount of signal going
to your compressor.Leave it all the way up(full right)unless
you have a need for it.If your compressor produces distortion
due to a higher output level from your instrument.or your
compressor is over aggressive in compression.
This control ccan be useful.


Specifications
-Input Impedance 1MΩ
-Output Impedance 1KΩ
-Power Supply : DC9V 100mA Center negative - Not included
-Dimension(L*W*H):11.5*6.5*5CM
-Weight:300g
