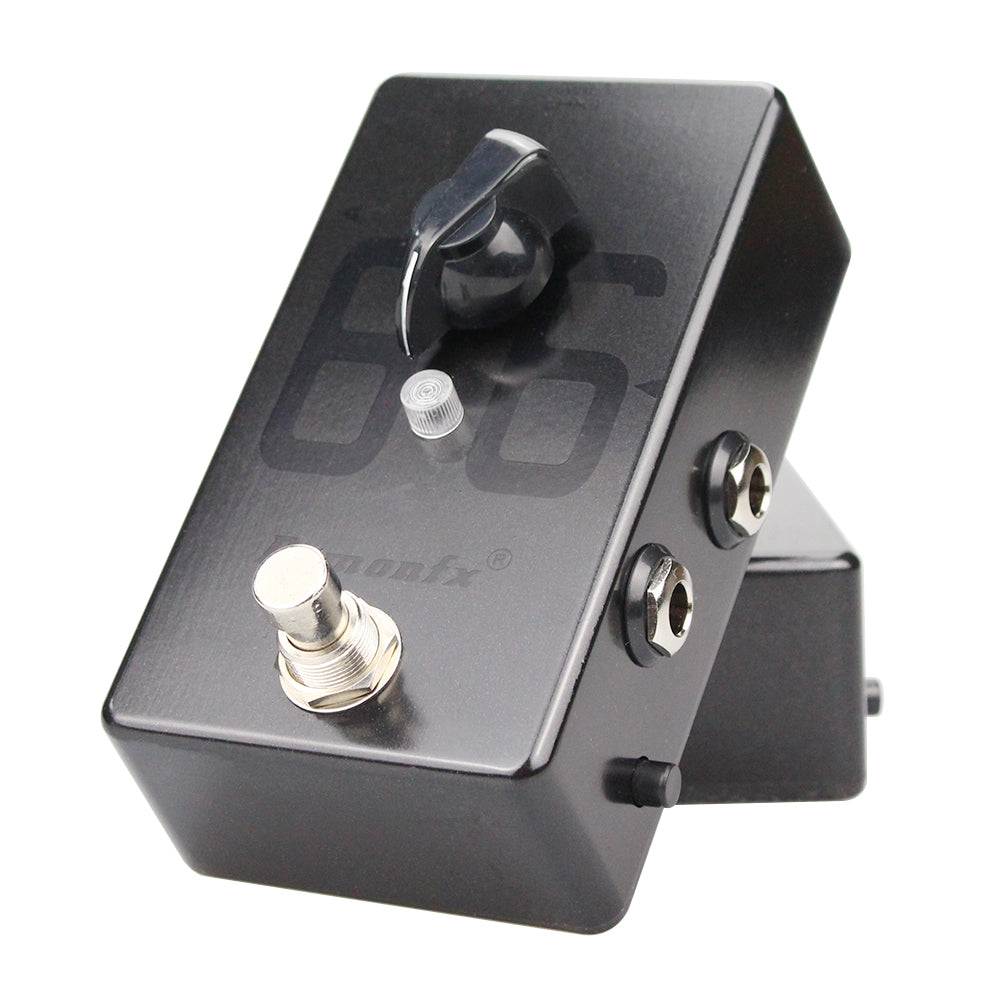

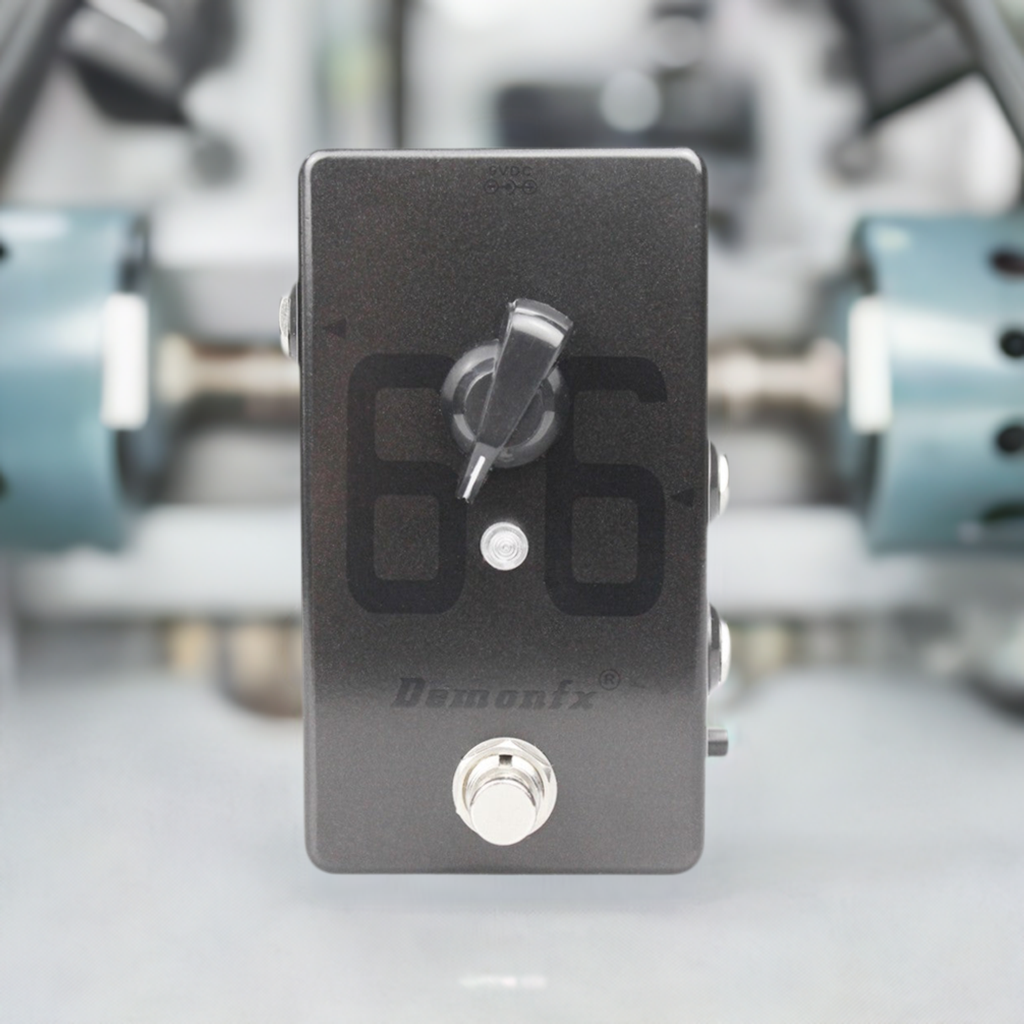

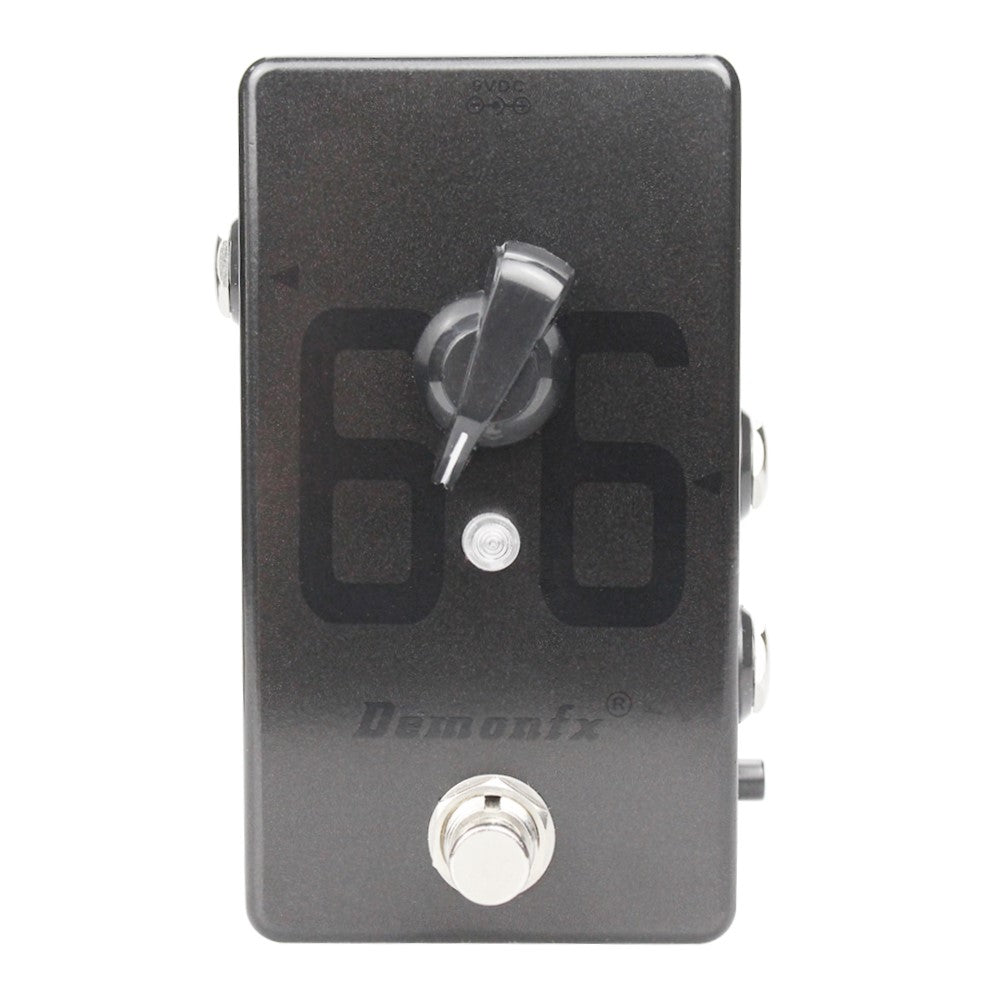

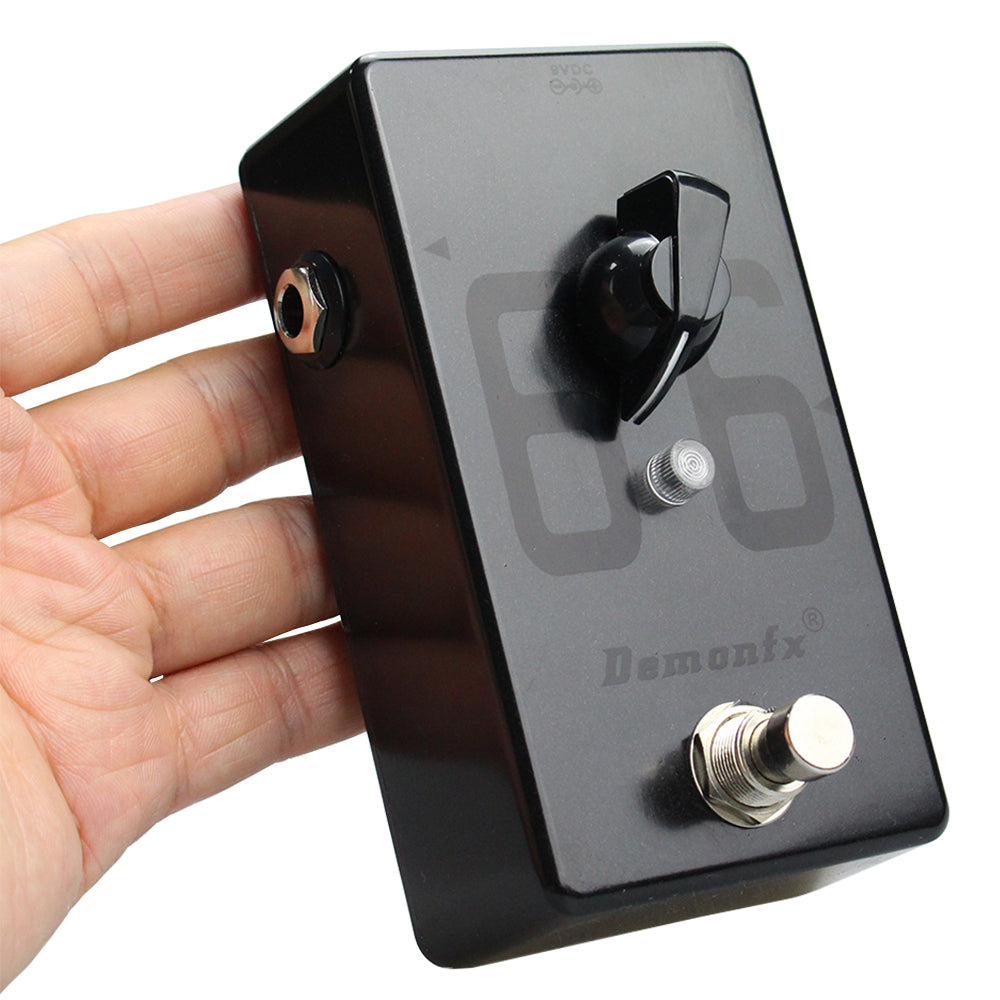

Based on FORTIN AMPLIFICATION 33 Booster - FREDRIK THORDENDAL SIGNATURE The 66 Boost level control provides up to +22dB of level with added side remote 1/4” jack for channel switching with mini slide switch to change orientation normally open or closed The 66 Booster is a Clean Booster effects pedal for Electric Guitar . With a level boost of up to 22dB, the 66 transforms any Guitar Amp into a brute high-gain wrecking ball without distorting its sound character. A practical detail of the 66 Booster is the side-mounted channel-switching jack, which can be used to change the channel of the amplifier when the pedal is turned on.
Boost Up to +22 dB boost transform any amplifier into a metal machine Additional side 6.35 mm jack for channel switching. Control: Boost Switch: Channel Switch Latch LED: effect on Footswitch: Effect Bypass Input: 6.35 mm jack Output: 6.35 mm jack Channel Switch: 6.35 mm jack Power connection: coaxial connector 5.5 x 2.1 mm, negative pole inside Current consumption: 27 mA Input Impedance: 5MΩ Output Impedance: 3kΩ True Bypass Power supply : 9 V DC power supply ( not included) Dimensions (W x D x H): 60 x 115 x 32 mm
