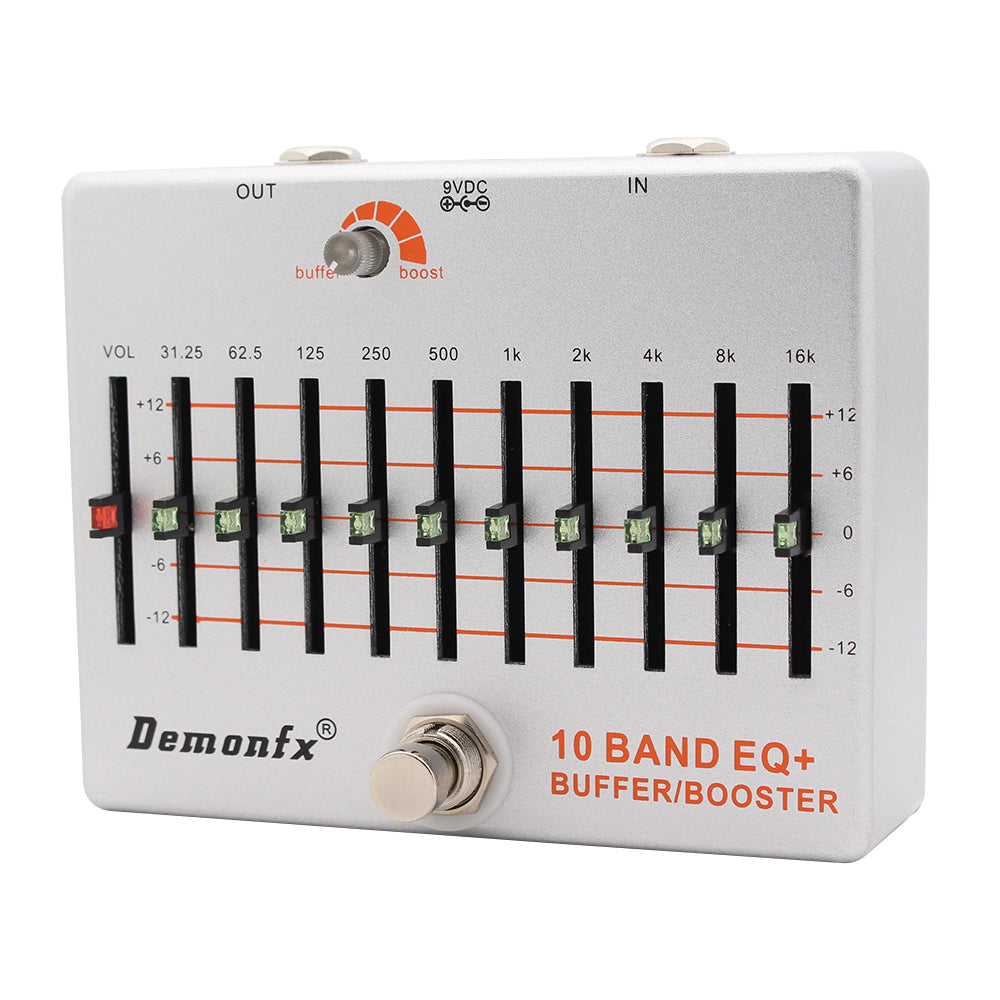

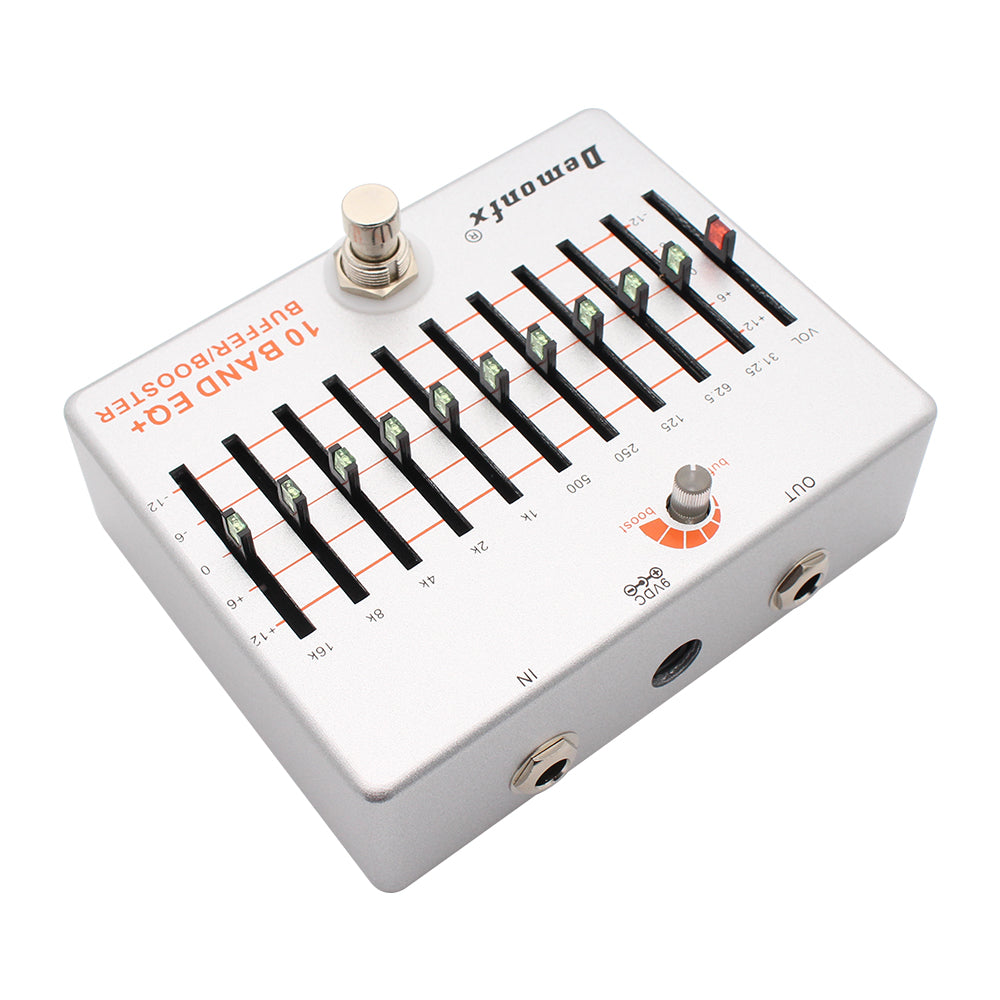

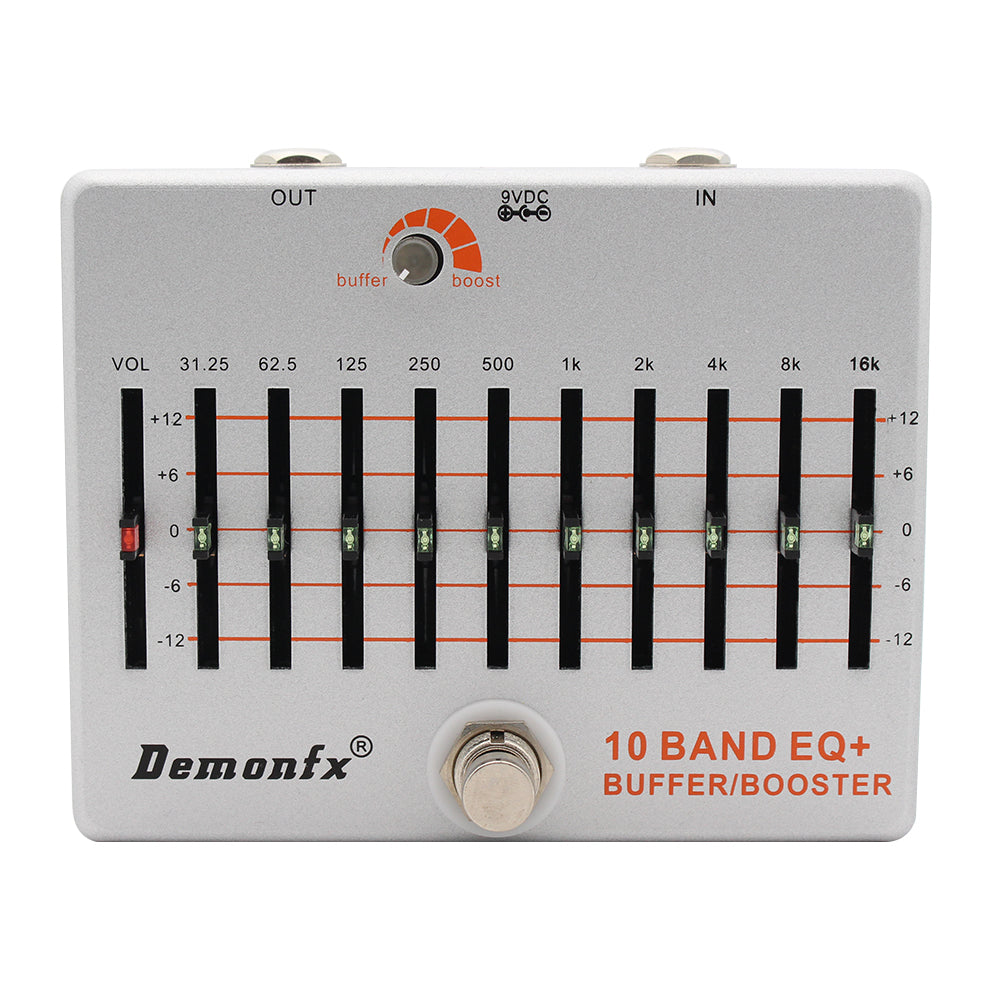

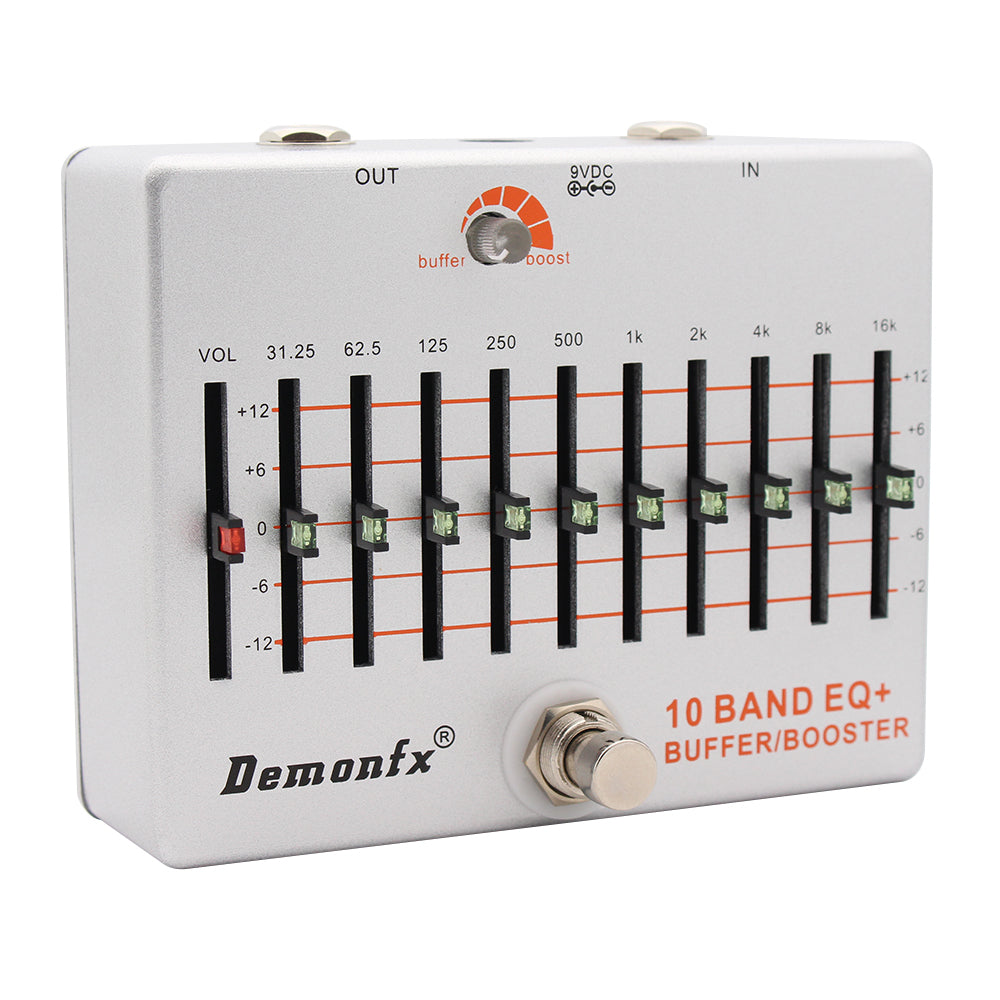

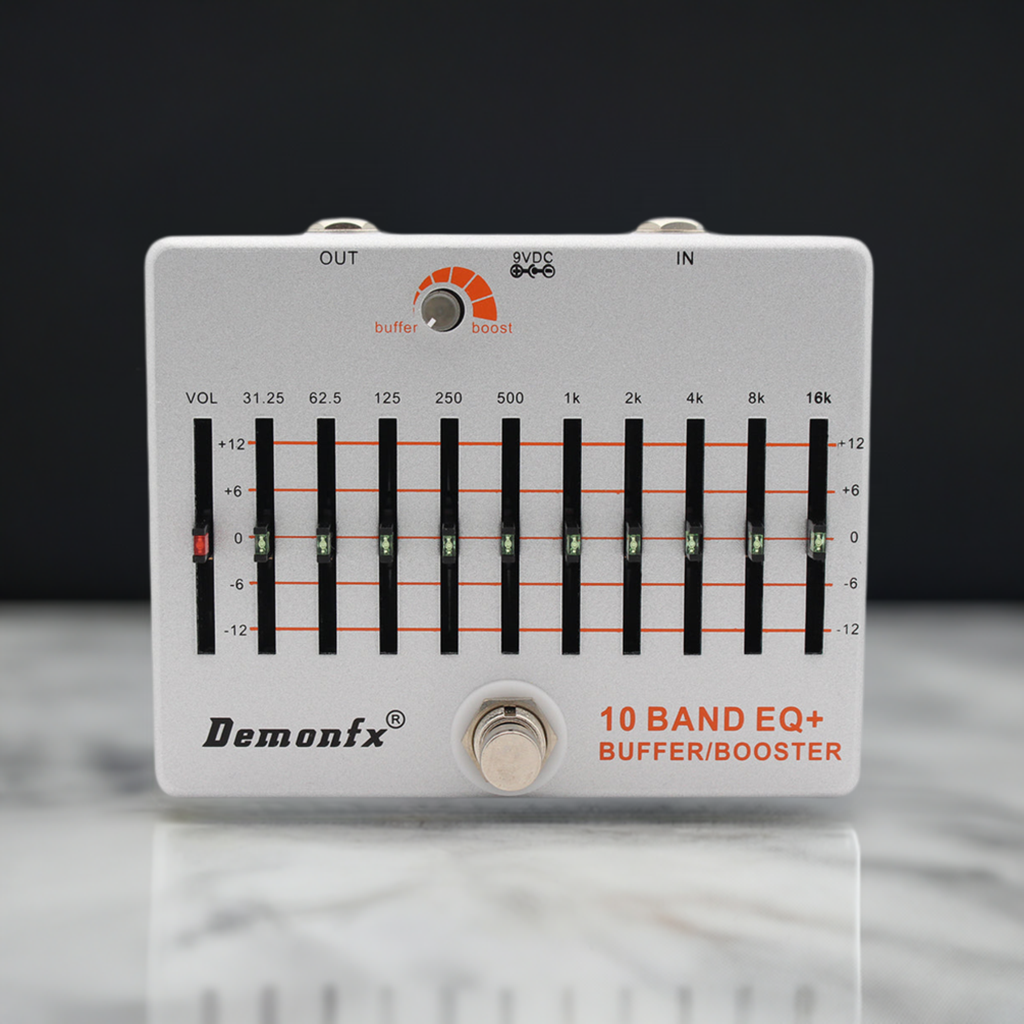

The Demonfx Ten Band Graphic EQ+BufferBooster gives players huge amounts of tone shaping and level control in a bullet-proof enclosure. This pedal has been upgraded with noise-reduction circuitry. With ten carefully chosen frequencies and input and output level controls, the Ten Band EQ will let you tune your bass or guitar rig to any room in seconds.
CONTROLS 1 VOLUME slider controls overall effect volume 2 EQ sliders boost or attenuate up to ±18dB at six different frequency centers 3 GAIN controls Buffer and amount of gain boost 4 FOOTSWITCH toggles effect on/off
DIRECTIONS • Run a cable from your guitar to the 10 EQ’s INPUT jack and run another cable from the 10 Eq’s OUTPUT jack to your amplifier. • Set all sliders to their 0dB position and depress the footswitch to turn the pedal on. • Move the VOLUME slider up to increase overall effect volume or down to decrease it. • Adjust the BufferBoost knob :=0 :clean buffer,>0 : buffer and clean boost • Move PARAGRAPHIC sliders up to boost or down to cut associated frequency by up to ±12dB.

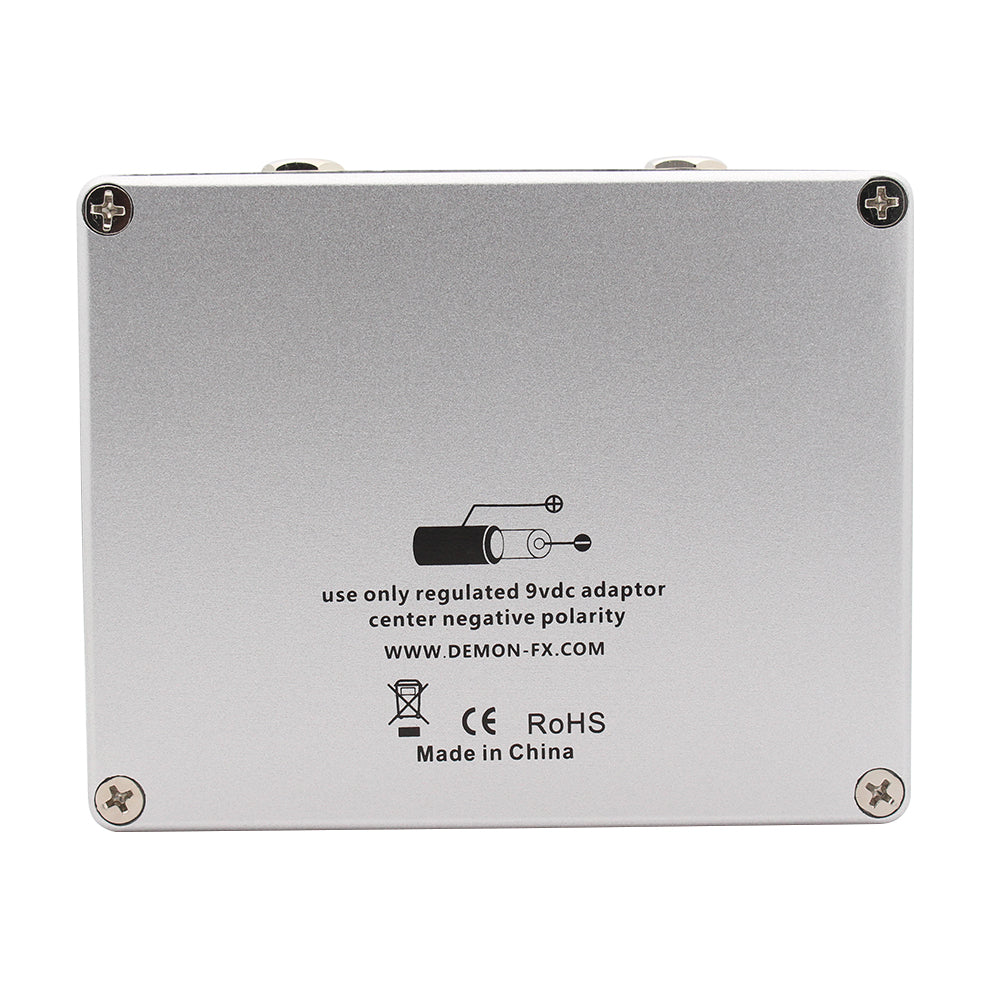

POWER SUPPLY: Please use a 9V DC power supply with (–) polarity on the middle pin. Not Included Using the incorrect supply may damage your pedal.
