FLAMMA FV03 Character Vocal Effects Pedal with Delay Reverb

About this item
Choose from three reverb effects to add body and weight to your voice while also choosing from Male, Female, Baby, or three different Robot voice effects!
Singers can also switch between WARM, BRIGHT, and NORMAL modes, with each mode indicating the type of EQ manipulation provided by the pedal.
Rich delay and reverb effects for polishing up vocals.
Line in function supports signal from microphone amplifier or FV series pedals.

Main Features
The FV03 Character allows users to create hilarious and life-like vocal effects to add unique sounds to your live show or musical project. Choose from three reverb effects to add body and weight to your voice while also choosing from Male, Female, Baby, or three different Robot voice effects! Singers can also switch between WARM, BRIGHT, and NORMAL modes, with each mode indicating the type of EQ manipulation provided by the pedal.

Rich delay and reverb effects for polishing up vocals.
Choose between 6 special voice-altering effects.
Includes guitar input with optional guitar reverb effects.
Support 48V phantom power.
Line in function supports signal from microphone amplifier or FV series pedals.
Two defferent output modes for mixed signal or individual signal from guitar and microphone.

About FV03 Character Effects Pedal

Signal Options

The FV03 Character is designed to be easily integrated into your pedal setup by offering mixed or individual signal in/out options for your guitar, microphone, or both.

Easy Control

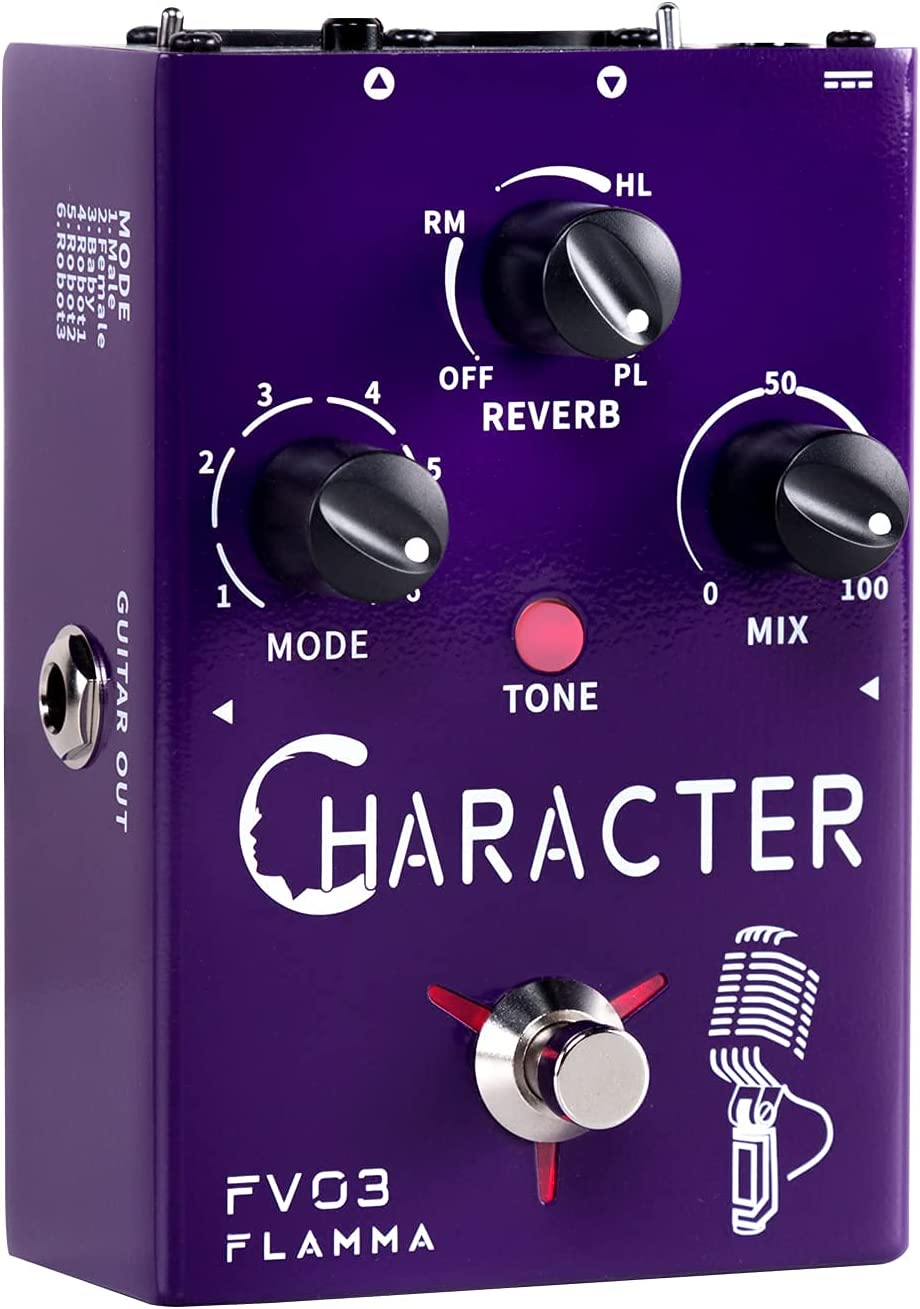

Knob layout includes Reverb effect selection and volume, vocal effects mode selection, and a Mix knob to set the levels of effects to your dry signal.

More Flexibility

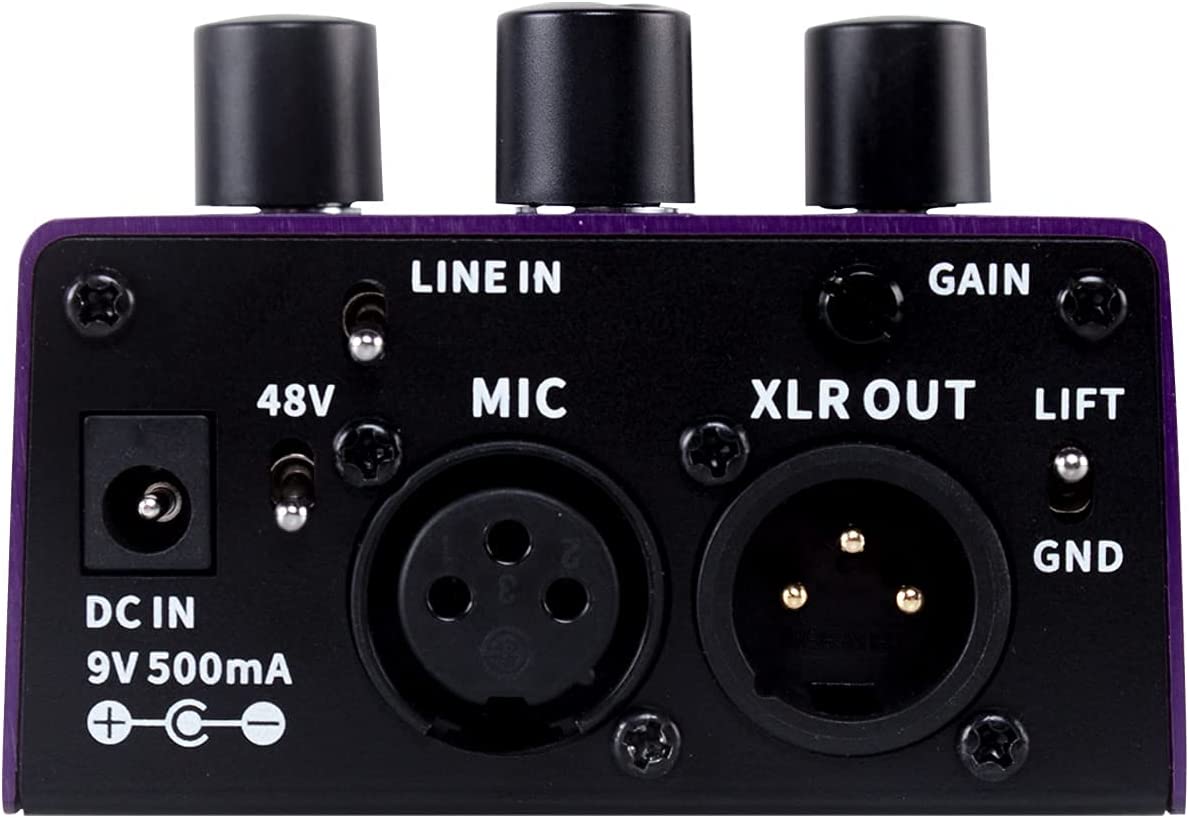

Input and output options feature Mic in with XLR balanced out as well as Guitar in/out channels. A balanced output grounding switch and a phantom power switch are also included to help with setup in a variety of different situations.

Reverb Effects

3 reverb effects: Room Reverb, Hall Reverb, Plate Reverb.

Adjust the volume level of those effects by rotating the REVERB to the relevant position.

Voice Tone Mode

Press the TONE button to switch between different voice tone profiles. The color of the TONE LED indicates the selected mode. (OFF: Normal; RED: Warm mode; BLUE: Bright mode)

Effects Mode

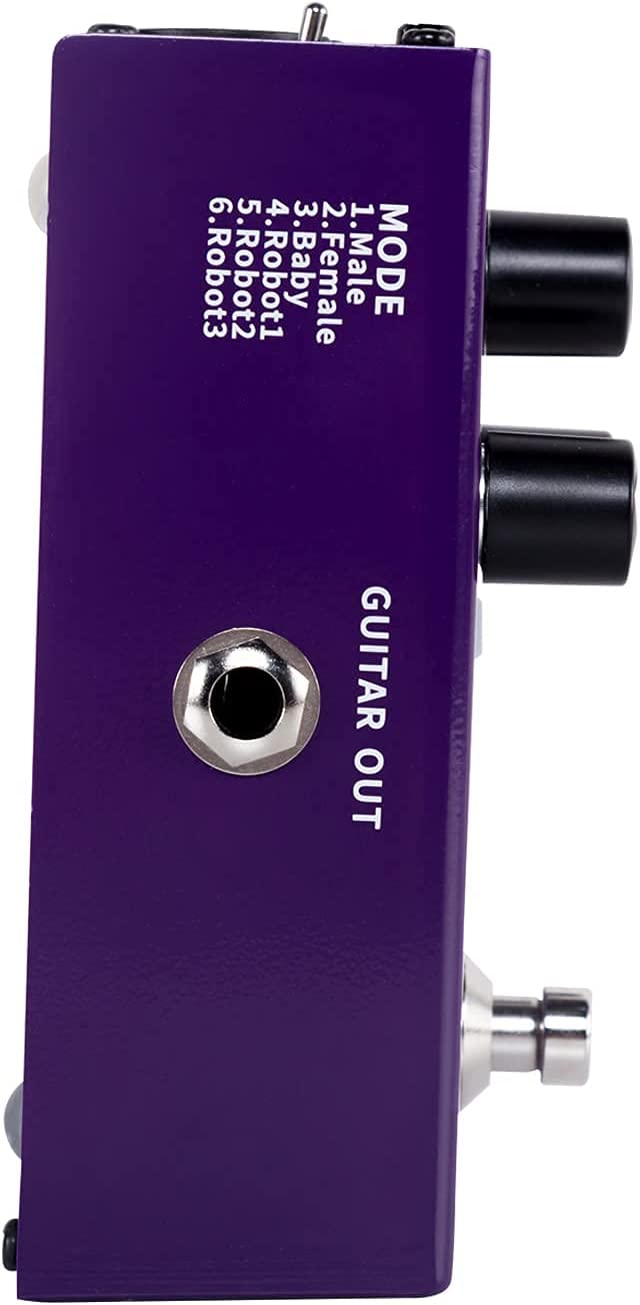

Switch between different voice effect modes: Low male voice, Warm female voice, Cute baby voice, Robot-like voice 1, Robot-like voice 2, Robot-like voice 3.

Footswitch

When the pedal is off, press the footswitch to turn on the voice and reverb effects. The LED will turn GREEN. Press it again to turn off the voece-altering effects. The LED will turn RED. Press and hold it to enter the hiden meun. The LED will turn YELLOW.

Output Modes

Individual Mode

The guitar signal will be sent via the GUITAR OUT only. The MIC signal will be sent through the XLR OUT only.

Mix Mode

The guitar signal and MIC signal will be mixed and sent via both GUITAR OUT and XLR OUT.

Specifications
GUITAR IN 1/4" mono audio jack ( impedance value: 1M ohms)
GUITAR OUT 1/4" mono audio jack ( impedance value: 100 ohms)
MIC XLR balanced input jack (impedance value: 2.14k ohms)
XLR OUTPUT XLR balanced output jack ( impedance value: 300 ohms)
Power Requirements AC adapter9V DC (Power Supply Included)
Current Draw 500 mA (Power Supply Included)

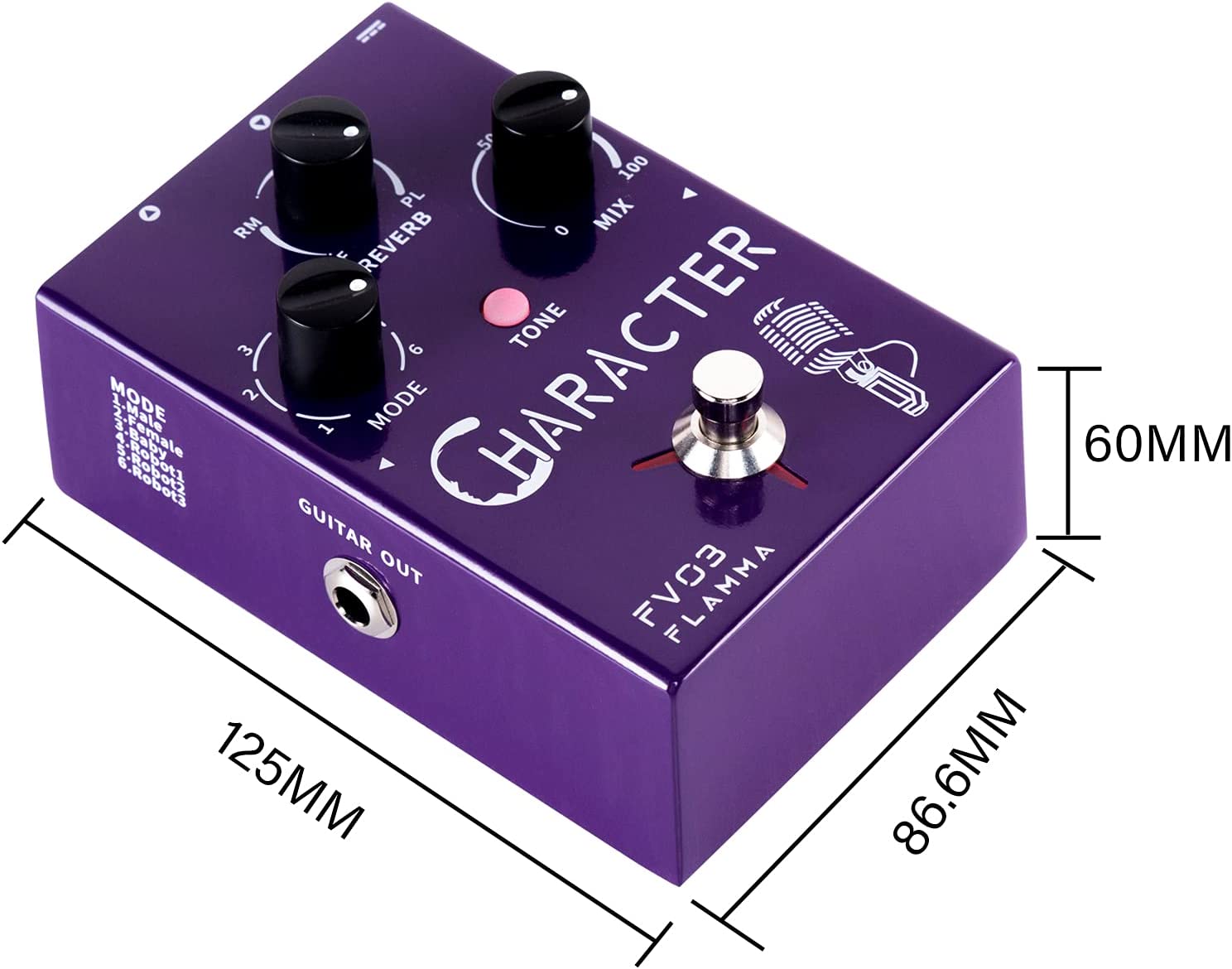

Dimension 86*125*60mm
Weight 0.371kg
Freq 20Hz-20KHz

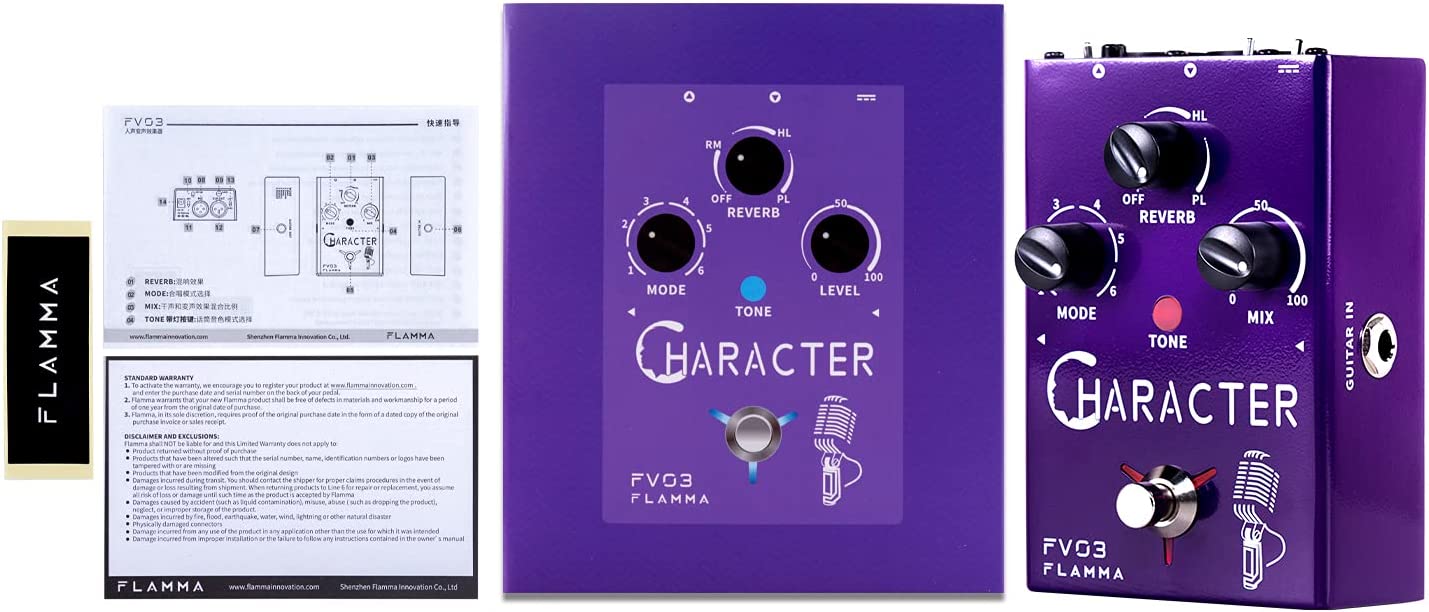

Accessories Safety Instruction Card, Sticker, Quick Guide
