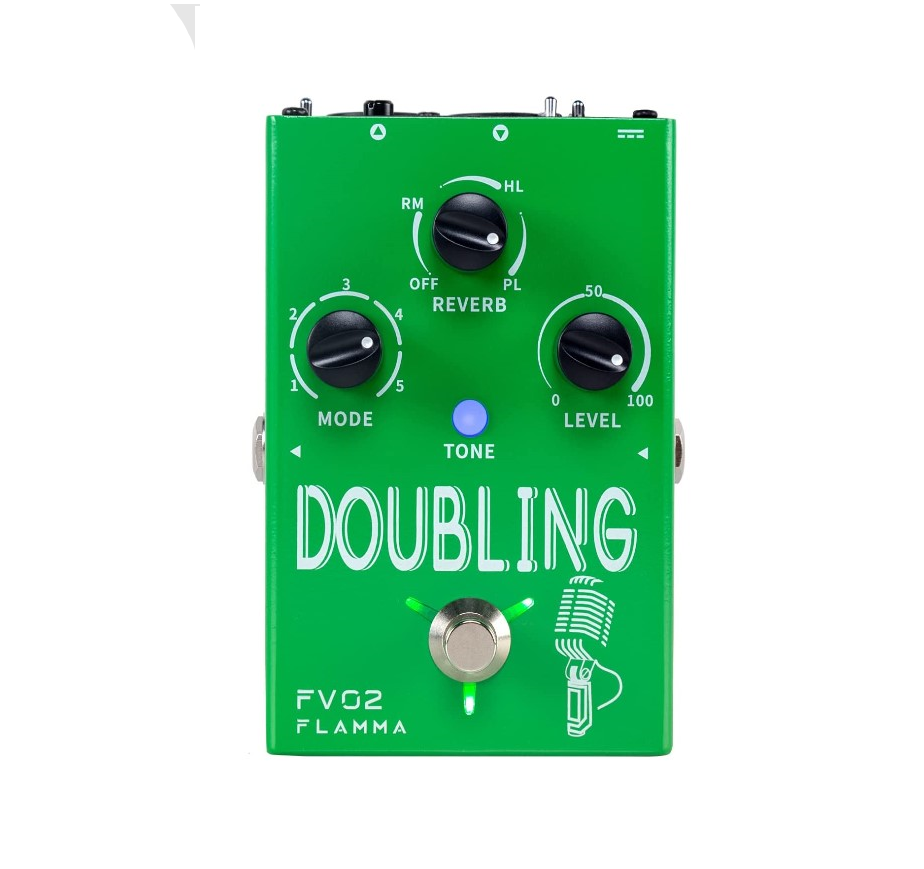

FLAMMA FV02 Doubling Vocal Pedal Processor Effects with Reverb Chorus

About this item
This vocal doubling pedal is designed for vocalists and guitarists to add rich chorus and reverb effects to their microphone and/or guitar signal.
Singers can also switch between WARM, BRIGHT, and NORMAL modes, with each mode indicating the type of EQ manipulation provided by the pedal.
Bult-in vocal reverb effects. Includes guitar input with an optional guitar reverb effect. Support 48V phantom power.
Line-in function supports signal from an external microphone amplifier or FV series pedals.
Two different potput modes for mixed siganl or individual signal from guitar and microphone.

Main Features
This pedal is designed for vocalists and guitarists to add rich chorus and reverb effects to their microphone and/or guitar signal. Singers can also switch between WARM, BRIGHT, and NORMAL modes, with each mode indicating the type of EQ manipulation provided by the pedal.

Choose between single or multiple vocal modes.
Bult-in vocal reverb effects.
Switch between three different tone modes with the press of a button.
Includes guitar input with an optional guitar reverb effect.
Support 48V phantom power.
Line-in function supports signal from an external microphone amplifier or FV series pedals.
Two different potput modes for mixed siganl or individual signal from guitar and microphone.

About FV02 Doubling Effects Pedal

Creative Effects

With the FV02 users can choose from five different chorus effects including a unison doubling effect, octave up, octave down, and two multiple voice effects. Reverb effects can also be added by using the corresponding reverb effect knob.

Easy To Use

Choose your ideal effect and adjust the parameter as you wish by twist the related knobs. Footswitch functionality is a bit different with the FV02, allowing easy toggling of chorus effects without breaking your back.

More Flexibility

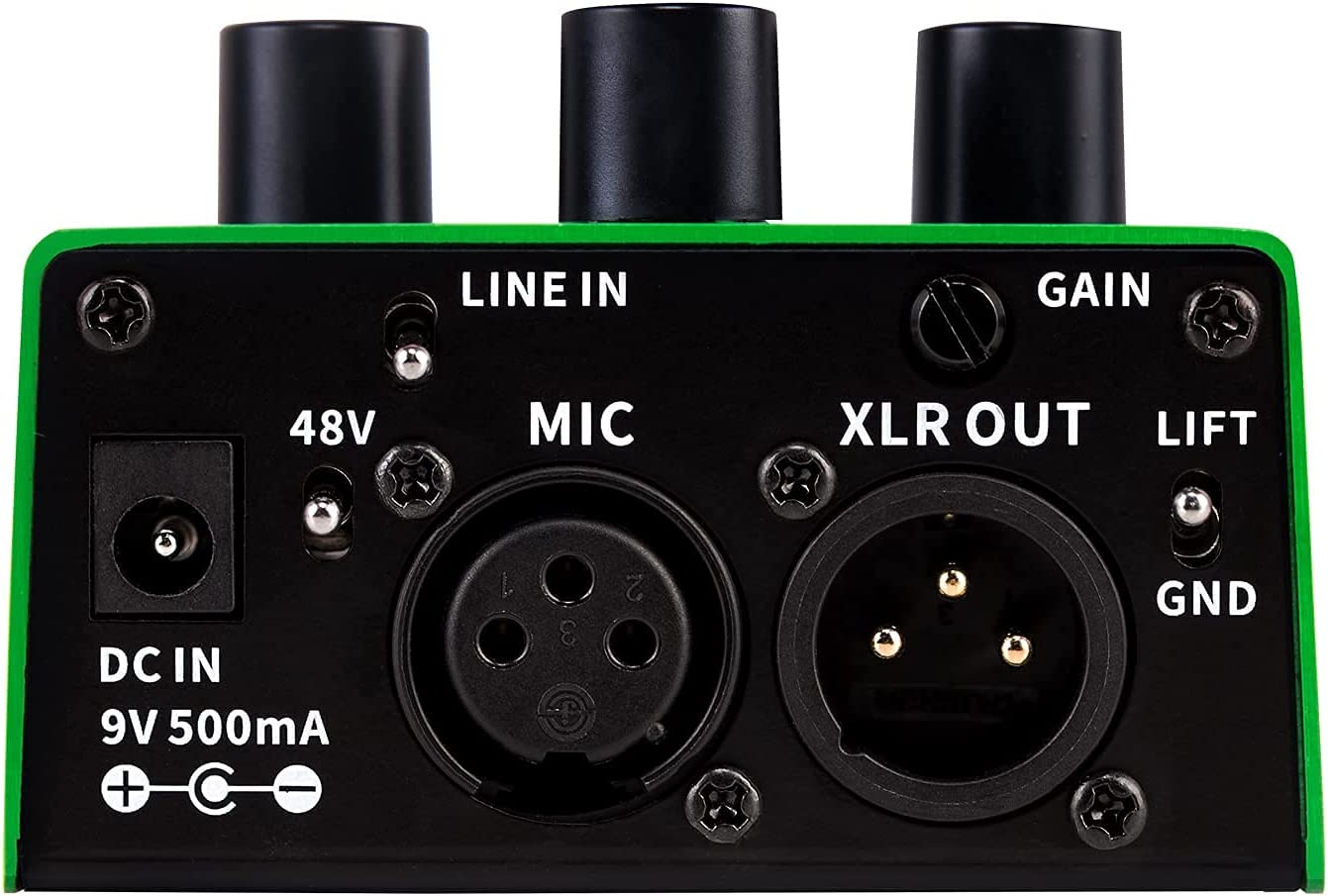

Guitar line in/out and XLR in/out are also included as well as a signal switch and support for 48v phantom power. Spice up your next solo performance with a rich chorus and reverb from the Flamma FV02.

Reverb Effects

3 reverb effects:

Room Reverb

Hall Reverb

Plate Reverb

Rotate the REVERB knob to adjust the volume level of those effects. Press and hold the footswitch to enter the hiden (Reverb) mode.

Chorus Effects

5 different chorus effects.

Unison: unison chorus

Oct: lower octave chorus

Oct+: upper octave chorus

Group1: "Multi-voice" chorus 1

Group 2: "Multi-voice" chorus 2

Rotate the LEVEL knob to adjust the chorus effects.

Voice Tone Mode

Press the TONE button to switch between different cocal effects. The color oh the TONE LED indicates the selected mode.

OFF: Normal

RED: Warm

BLUE: Bright

Footswitch

When the pedal is off, press the footswitch to turn on the chorus and reverb effects. the footswitch LED will turn GREEN.

Press it again to turn off the chorus effect. The footswitch LED will turn RED.

Press and hold it to enter the hidden(Reverb) menu.

Output Modes

Individual Mode

The guitar signal will be sent via the GUITAR OUT only. The MIC signal will be sent via the XLR OUT only.

Mix Mode

The guitar signal and MIC signal will be mixed and sent via both the GUITAR OUT and the XLR OUT outputs.

Specifications

GUITAR IN 1/4" mono audio jack (impedance value: 1M ohms)
GUITAR OUT 1/4" mono audio jack (impedance value: 100 ohms)
MIC XLR balanced input jack (impedance value: 2.14k ohms)
XLR OUTPUT XLR balanced output jack (impedance value: 300 ohms)
Power Requirements AC adapter 9V DC (Power Supply Included)
Current Draw 500mA (Power Supply Included)

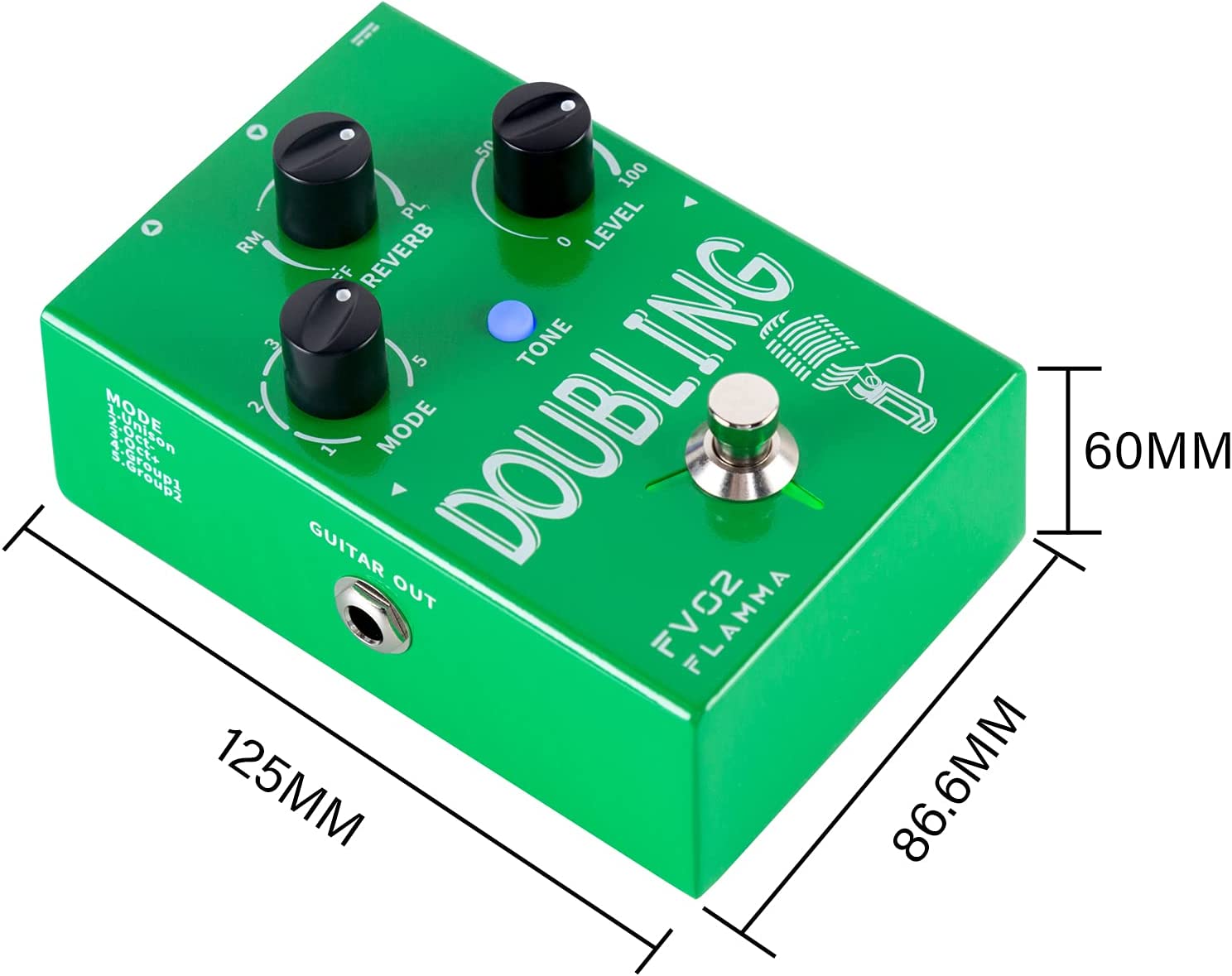

Dimension 86*125*60mm
Weight 0.371kg
Freq 20 Hz-20K Hz

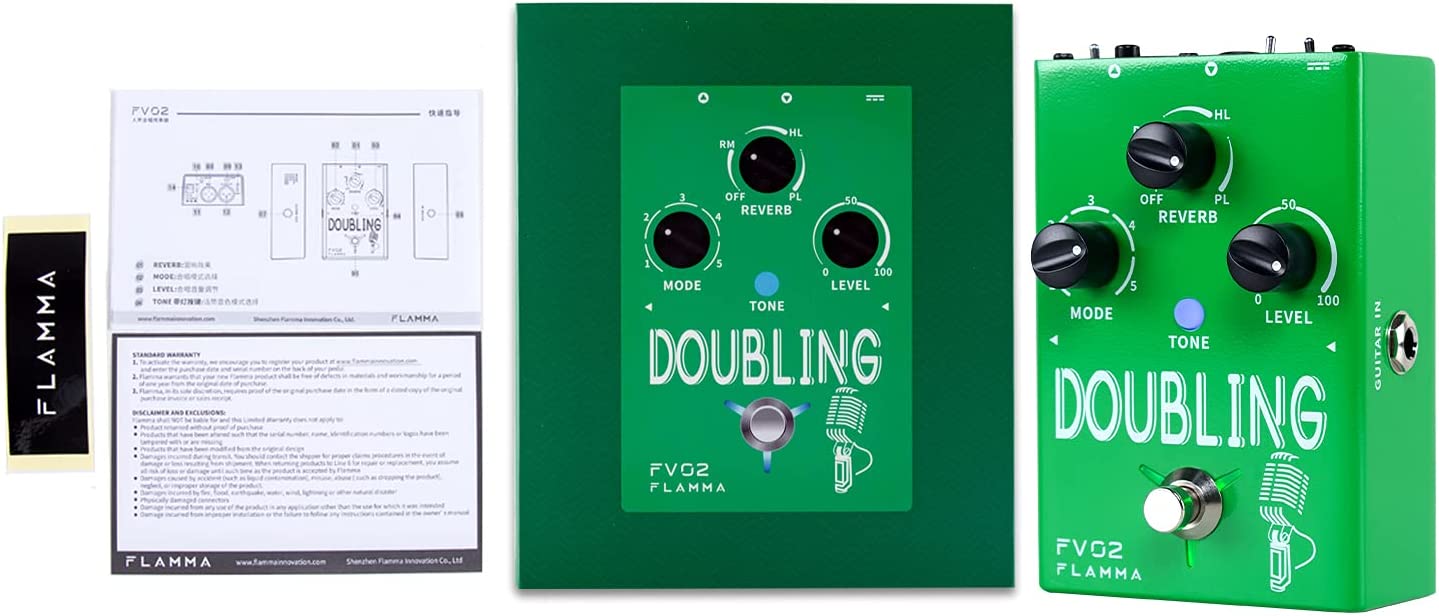

Accessories Safety Instruction Card, Sticker, Quick Guide
