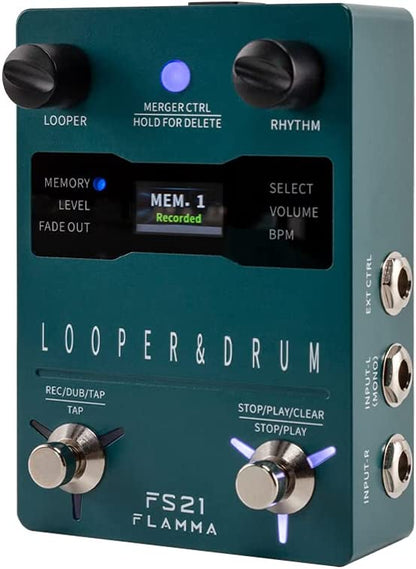

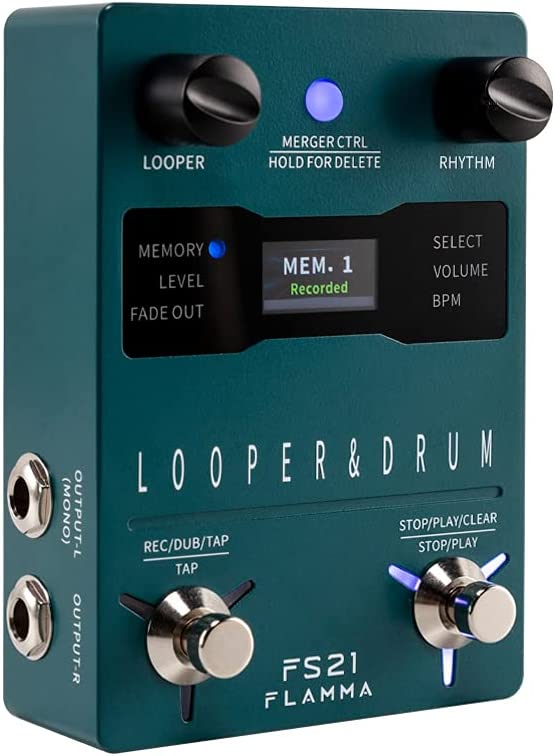

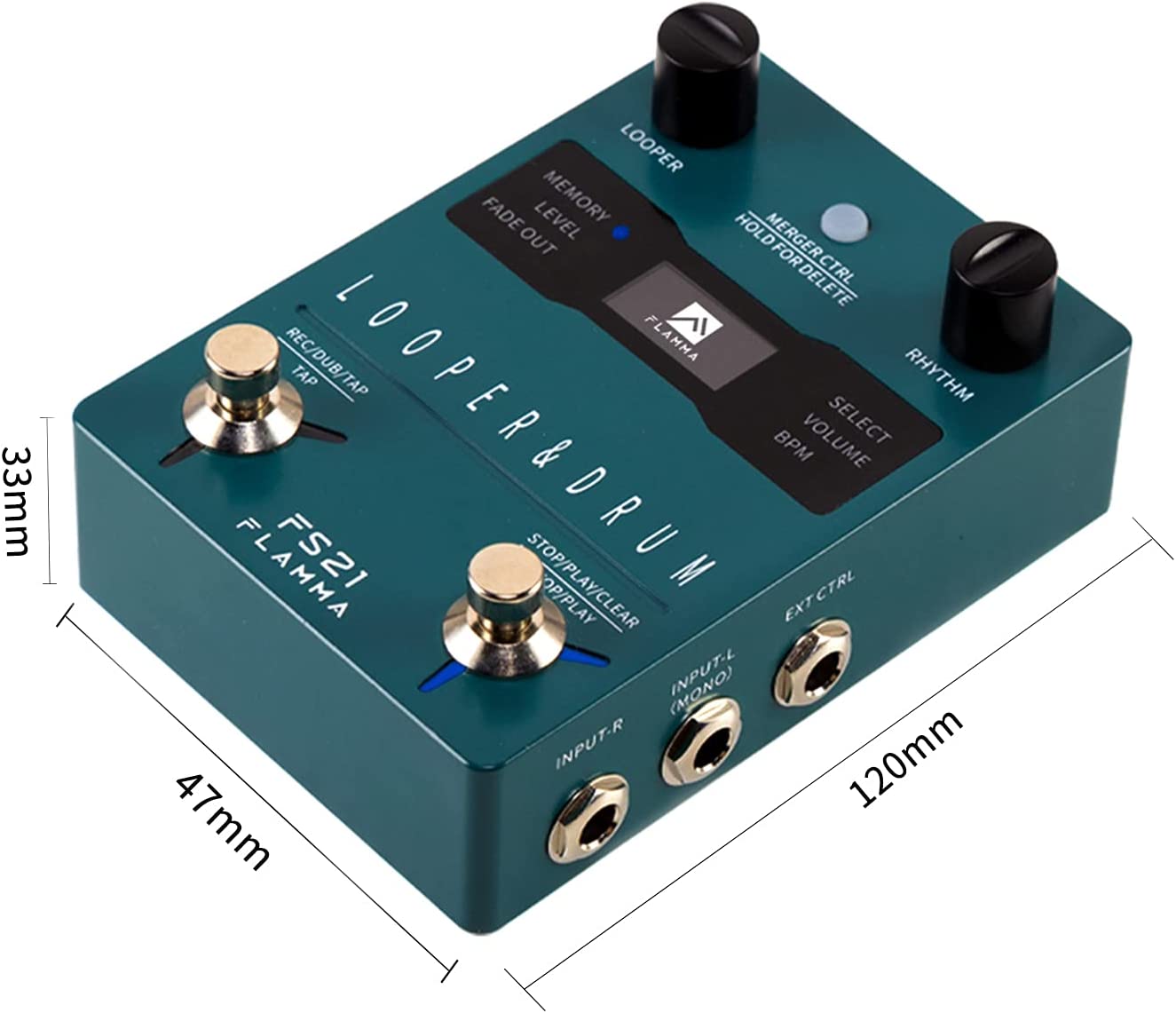

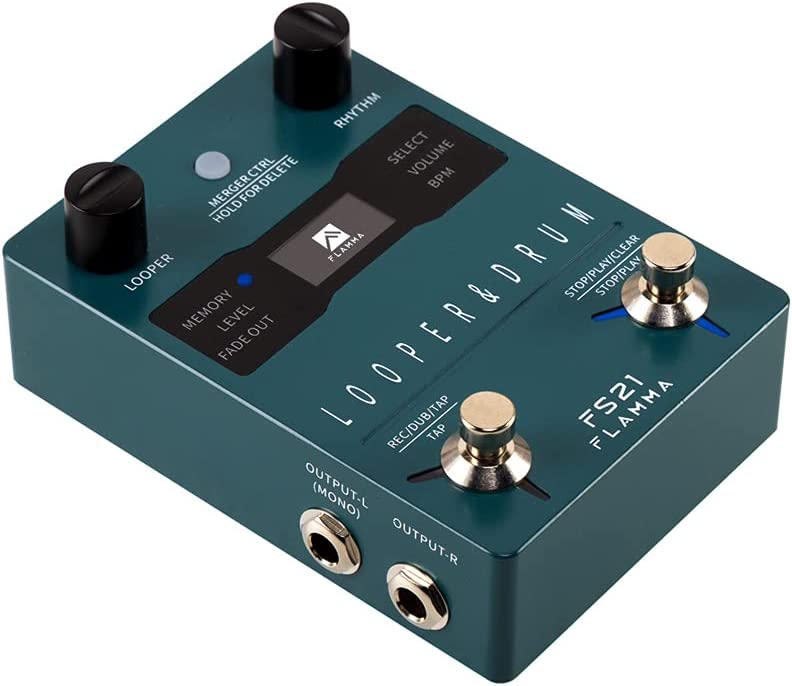

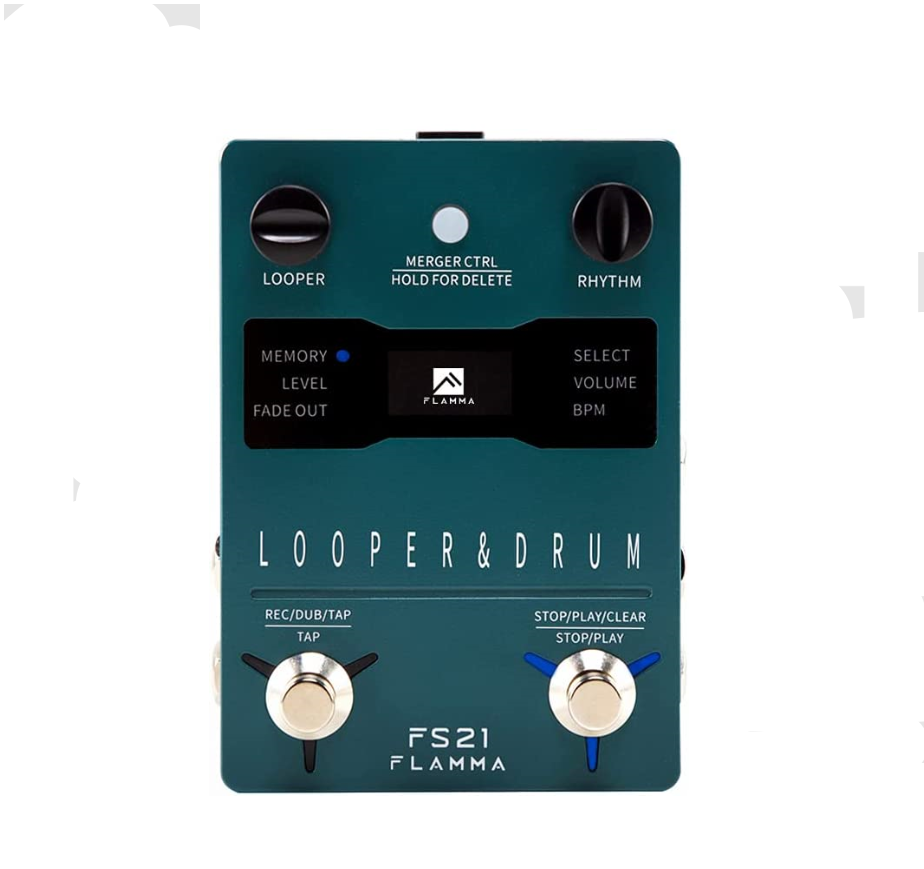

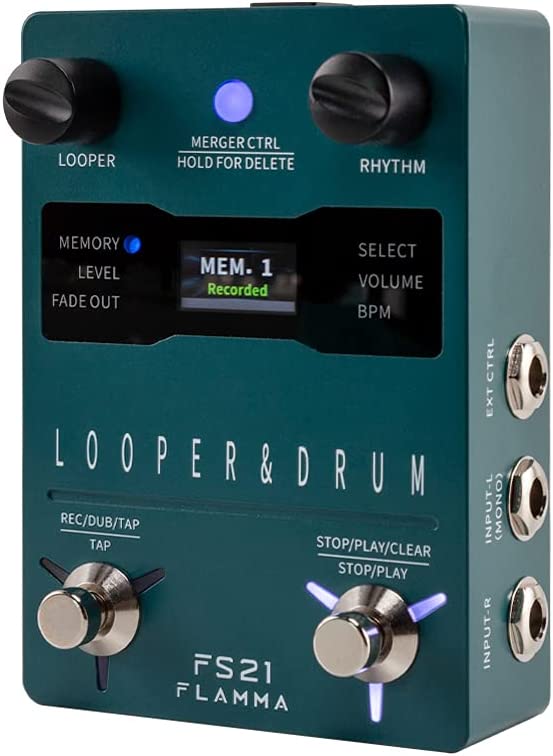

FLAMMA FS21 Drum Machine Looper Pedal Stereo

About this item
44.1kHz 24bit high-quality looper and drum machine.
Up to 4 minutes of recording time pereachtrack,40 preset slots, and 160 minutes total recording capacity.
100 different drum grooves from 10 unique music styles. 10 types of metronome settings to choose from.
EXT CTRL function supports external footswitch control (purchased separately).
Supports import/export recording via USB. ONE-YEAR GUARANTEE.

FEATURES
44.1kHz 24bit high-quality looper and drum machine.
Up to 4 minutes of recording time per track, 40 preset slots,160 minutes total recording capacity.
100 different drum grooves from 10 unique music styles. 10 types of metronome settings.
EXT CTRL function supports external footswitch control (purchased· separately)
Supports import/export recording via USB. It is not compatible with the M1 chip of Mac.
The detail of the recording is displayed by the progress bar on the screen.
Separate footswitch for controlling looper and drum machine.
Recording saved automatically, even after FS21 is powered off.
Maximum recording time of each track: 4minutes
Maximum number of recording tracks in each slot: No limitation

About FS21 Drum Loop Pedal

Modules Switch

FS21 has both Looper and Rhythm modules. Users can switch between them by pressing both footswitches simultaneously.

LOOPER + RHYTHM

Looper and Rhythm are two individual modules. The on/off of the one will not affect the other.

External Footswitch

FS21 support external footswitch control via EXT CTRL port. (External footswitch purchased separately)

Merger CTRL

Merger CTRL button can be accessed to play/stop both Looper and Rhythm simultaneously.

Editor Software

It is not compatible with the M1 chip of Mac.
FS21 supports import/export looper files and Factory Reset via editor software. Please enter the relevant page of our official website for download.

Download and install the editor software and audio drivers. Connect FS21 with the computer via USB to access the editor software control. When connecting with the computer, “USB connect” will be displayed on the screen.

The FS21 can be controlled by the software only.
Buttons and footswitches will not respond in this mode.
The exported audio file from the LOOPER recording, without the RHYTHM sound.
Deleting a looper file from a slot will set the volume, BPM, rhythm type or other parameters of back to default settings.

Connect FS21 with computer via USB to access the editor software control.

USB：Micro type-B USB. Connect to computer for editor software, import/export recorded files, perform factory reset
DC IN： Power supply, 9V 300mA negative inside.

INPUT
Type 2*1/4" unbalanced mono audio jacks
Impedance 1 Meg ohm
Maximum Input Level 3 dBu
Sampling Rate 44.1 kHz
Sampling Accuracy 24 bit
Dynamic 103 dB
Frequency 20Hz~20KHz, +0/-1 dB

OUTPUT
Type 2*1/4" unbalanced mono audio jacks
Impedance 470 ohm
Maximum Input Level 3 dBu
Dynamic 106 dB
Frequency 20Hz~20KHz, +0/-1 dB
USB Type-B Micro USB
EXT CTRL 1/4" TRS jack*1
