FLAMMA FS07 Stereo Cab Simulation Support IR Loading

About this item
High-quality stereo cabinet simulation/IR loading pedal.
Includes 7 user preset slots that can store two different cabinet simulation setting each.
11 factory cabinet simulation files with support for loading third-party impulse response files
Comes with specialized editor software for quick management of your presets.
Choose between mono or stereo setups.
Please use a 9V with more than 300mA power supply. Power Supply is NOT Included.

Main Features
The FS07 Cab pedal features 11 built-in cabinet simulation effects while also supporting endless customization by supporting third-party impulse response files.

Using the FS07 is a breeze with a dual-function footswitch that can be used as a traditional power toggle or as a way to easily cycle through the seven customizable preset slots. Each preset and cab simfile can be adjusted to your taste by using the pedal knobs, or by using the free editor software for even more precise tweaking.

High-quality stereo cabinet simulation/IR loading pedal.
Includes 7 user preset slots that can store two different cabinet simulation setting each.
11 factory cabinet simulation files with support for loading third-party impulse response files
Choose between mono or stereo setups
The footswitch can be assigned as a traditional on/off switch or to switch between presets.
Comes with specialized editor software for quick management of your presets.

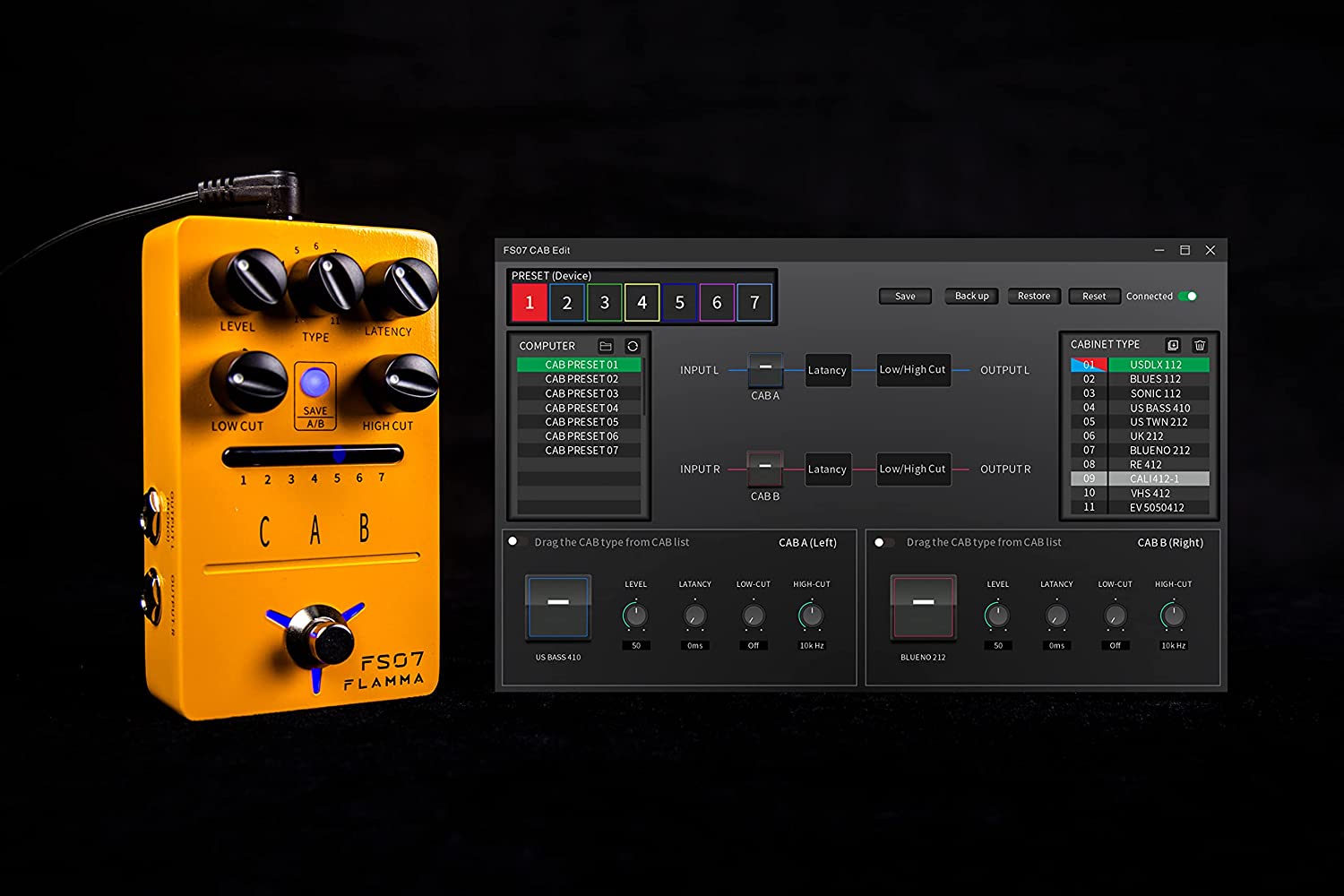

FS07 Software Edit
This is the editor software for the FS07. Users can quickly adjust parameters, manage presets, load impulse response files, backup users' files, etc.

Download

Visit the official FLAMMA website and download the software version that matches your operating system.

OS requirements: Win 7 or Higher, Mac OS 10.11 or higher.

About FS07 Cabinet Simulaiton Pedal

IR Loader

11 factory cabinet simulation files with support for loading third-party impulse response files. Basically covers various cabinet types. You can also load your own IR files. The IR supports 24-bit, 44.4 kHz mono WAV files.

7 Storeable Presets

The 7 user preset slots can store two different cabinet simulation settings each. Press the SAVE button to select left or right output. A blue LED indicates the left output cab sim and the red LED indicated the right output cab sim.

Software Edit

Connect the pedal to your computer to click to choose, adjust, save and export the presets. You can even also backup and restore youf preset in this compact and quality pedal by clicks. It also provides more flexibility to your use.

High-quality Stereo Pedal

Mono and Stereo routing design provide more choices for your sound creation. Each preset can store and also export the parameters of left output and right output individually.

Effects List

Connection Instrustion


Specification
Input 2*1/4 monoaural jack (Impedance value: 4.7M ohms)
Output 2*1/4 monoaural jack (Impedance value: 100 ohms)

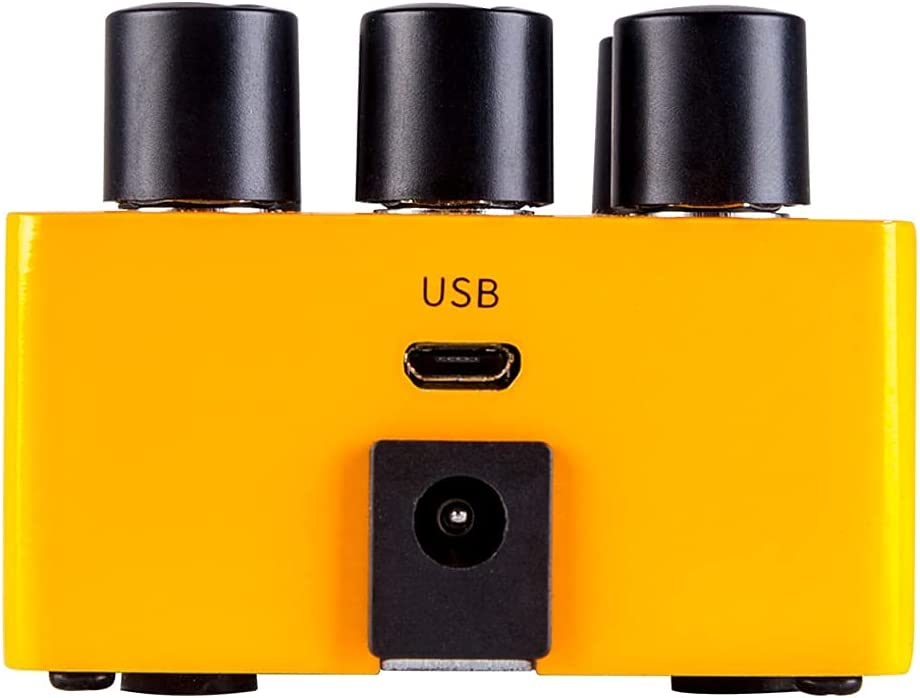

Power Supply 9V DC center negative (Please ensure the voltage value of power supply is not more than 9V, ensure the polarity is correct)
Current Draw 300mA

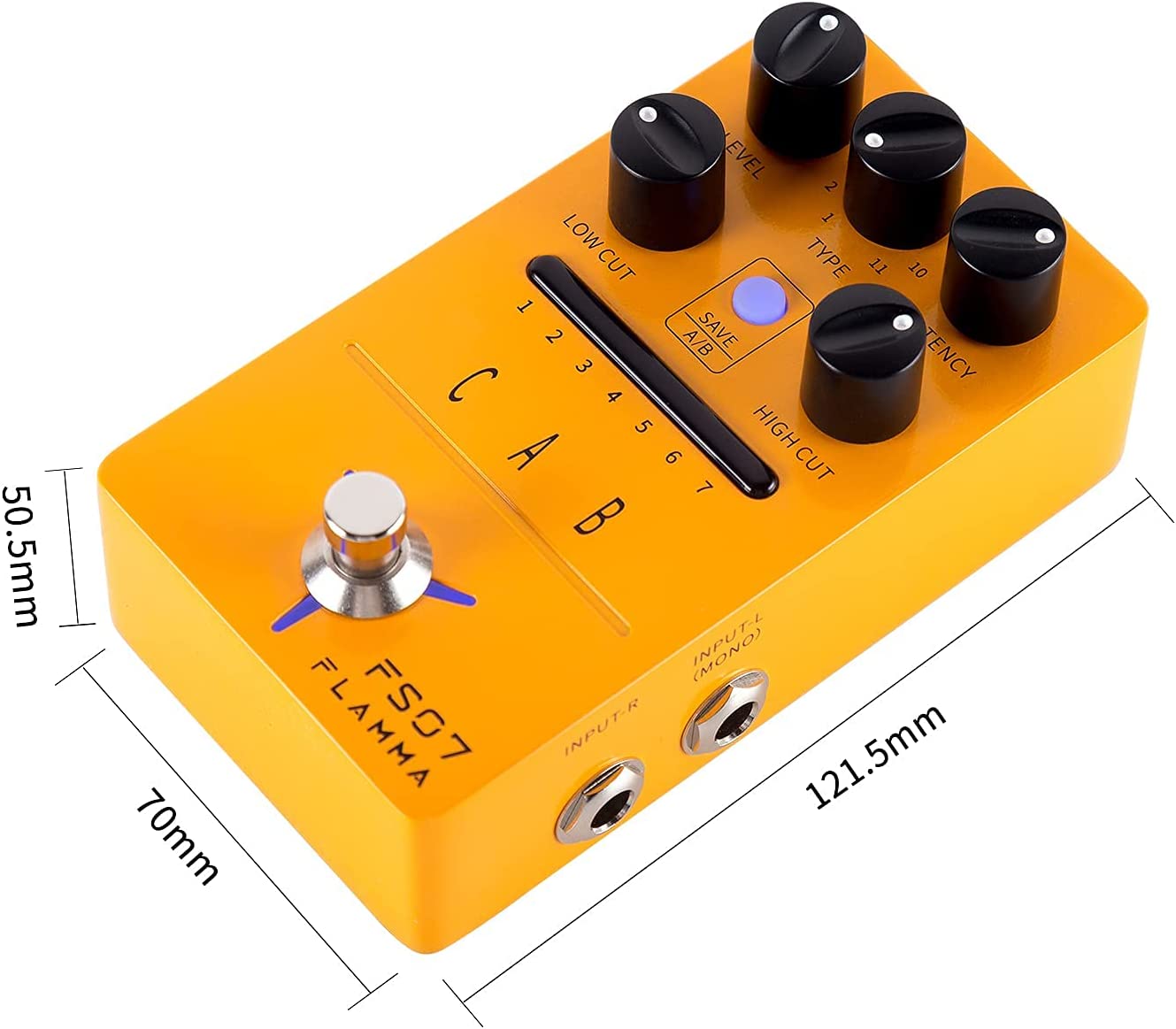

Dimension 70*121.5*50.5 mm
Weight 0.3kg

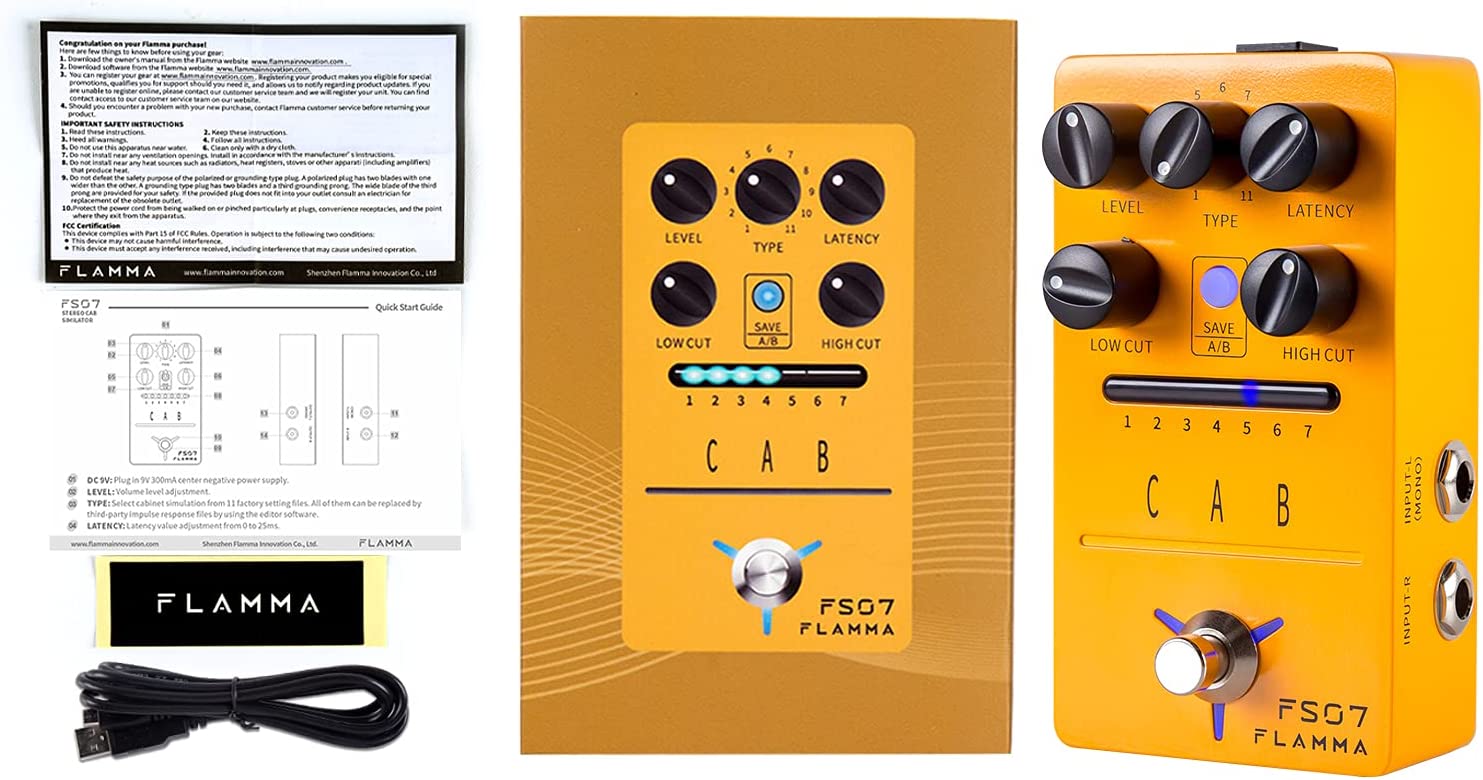

Accissories Quick Guide, Sticker, USB Micro B cable
