FLAMMA FX200 Pink Guitar Multi Effects

About this item
High-quality 5” LCD touch screen.
4 footswitches for controlling presets and guitar effects.10 effects modules with 160 different types of effects in total. Up to 200 editable user preset slots.
Editable effects chain allows users to change the order of modules.
Extensive I/O that provides flexibility for studio, stage, or practice.
58 Built-in preamp models based on non-linear sample modelling technology to recreate the feel of an authentic tube amplifier.
30 high-quality cabinet simulations (1024pts) with support for loading up to 50 third-party impulse response files.
80 drum machine variations and 10 metronome styles to choose from.
Integrated 52-second looper can be set to pre mode or post mode.

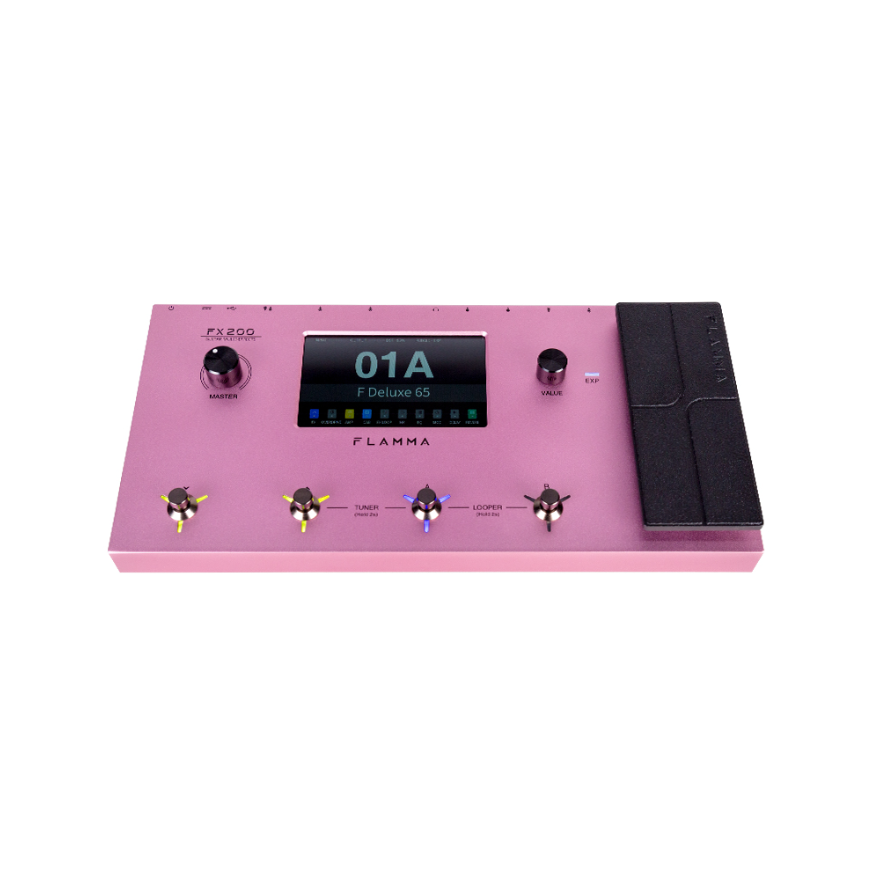

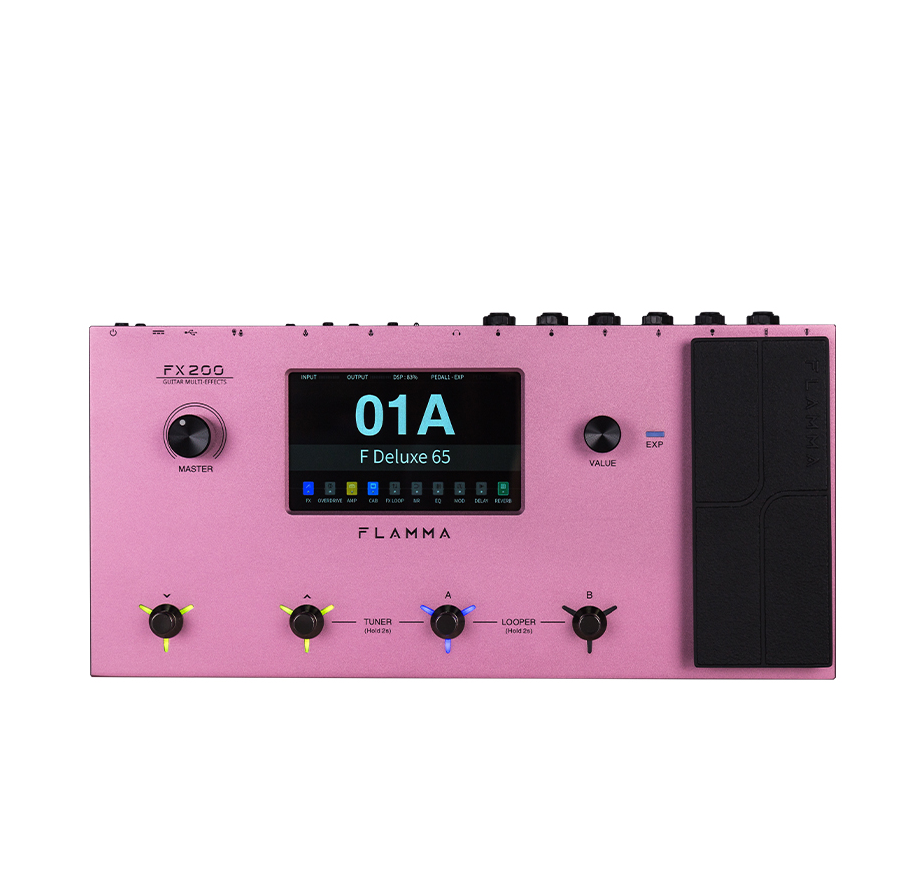

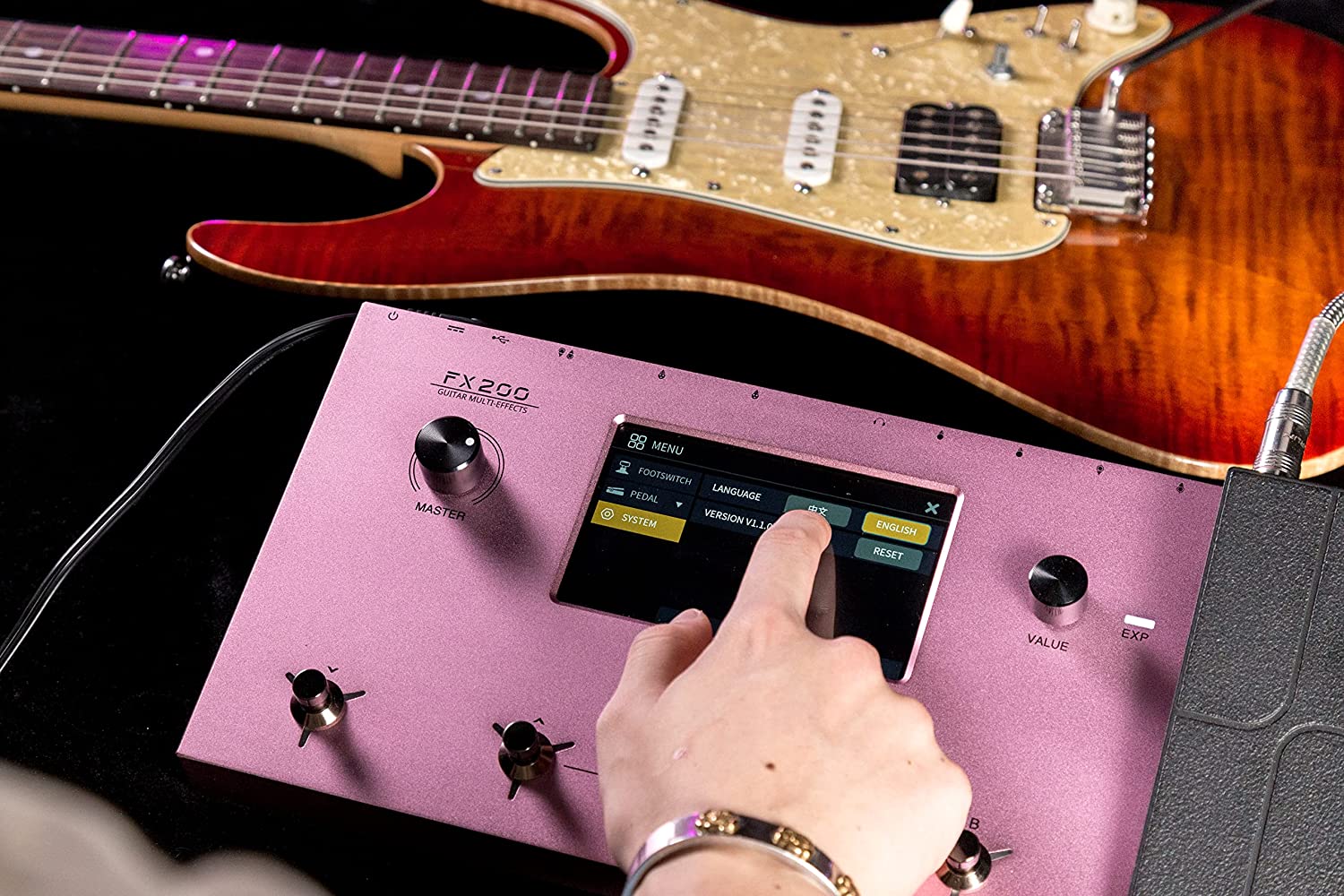

Touch Screen

The FX200 multi effects pedal features a brand-new 5” LCD touch screen and a newly polished user interface where digital pedal icons pop and recreate the feel of Flamma’s micro pedal lineup.

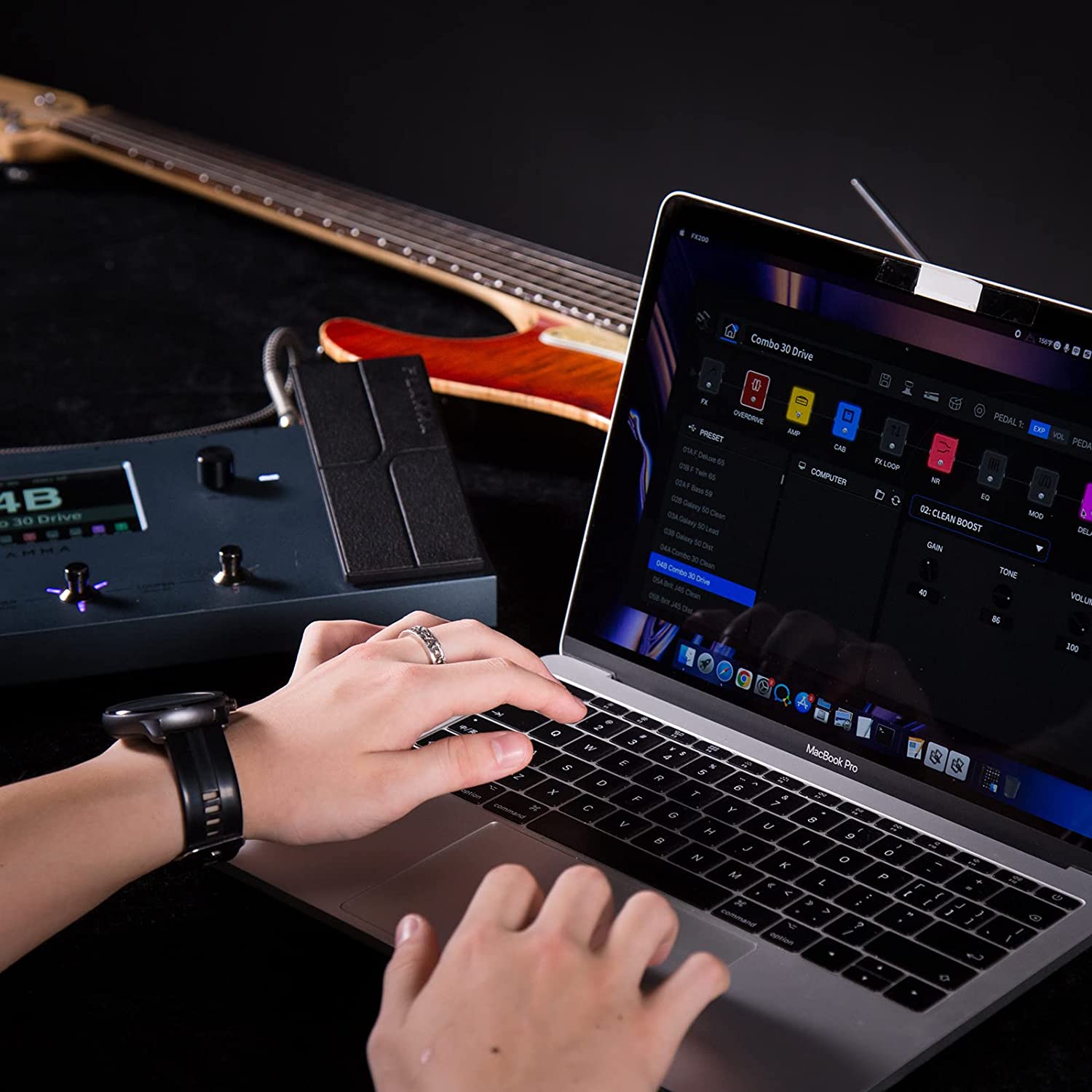

Software Edit

The FX200 has been designed to easily interface with a computer to edit and manage the device using the specialized editing software, available to download for free. PC connections now conveniently take place over USB-C, and users can easily update the firmware or backup presets while connected.

Editable Effects Chain

The editable effects chain allows users to change the order of modules. The FX200 also includes a built-in tuner, 10 metronome and 80 drum machine options, a 52-second capacity looper, and external footswitch support. A variety of presets is also preloaded so users can plug and play right out of the box.


30 high-quality cabinet simulations (1024pts) with support for loading up to 50 third-party impulse response files.

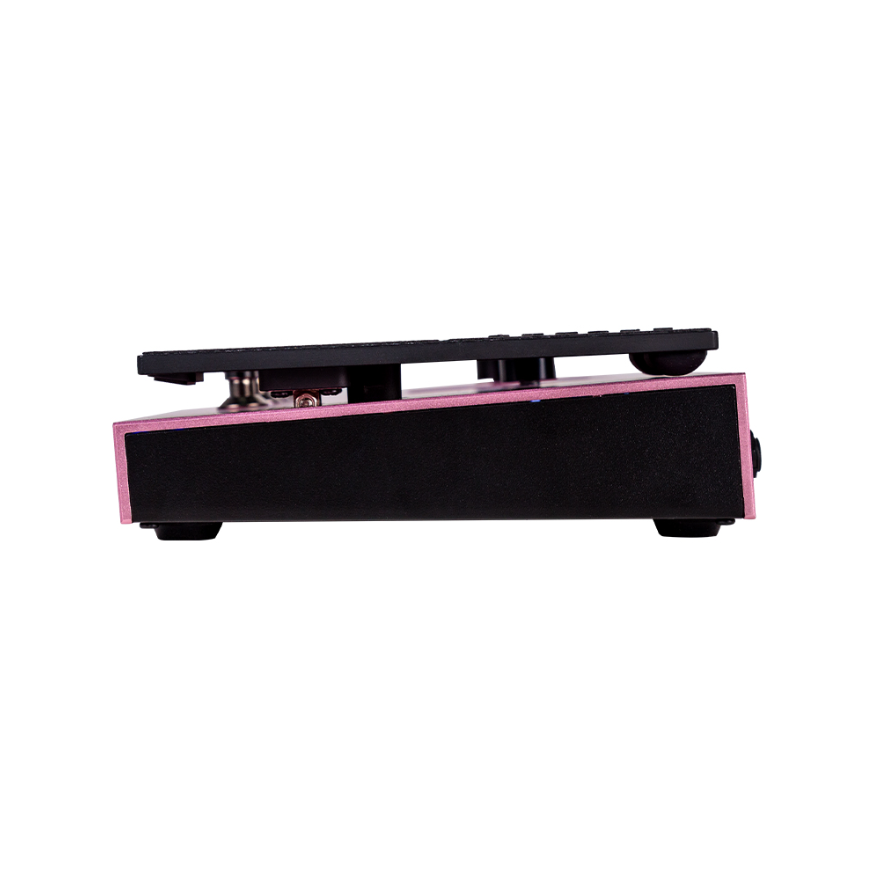

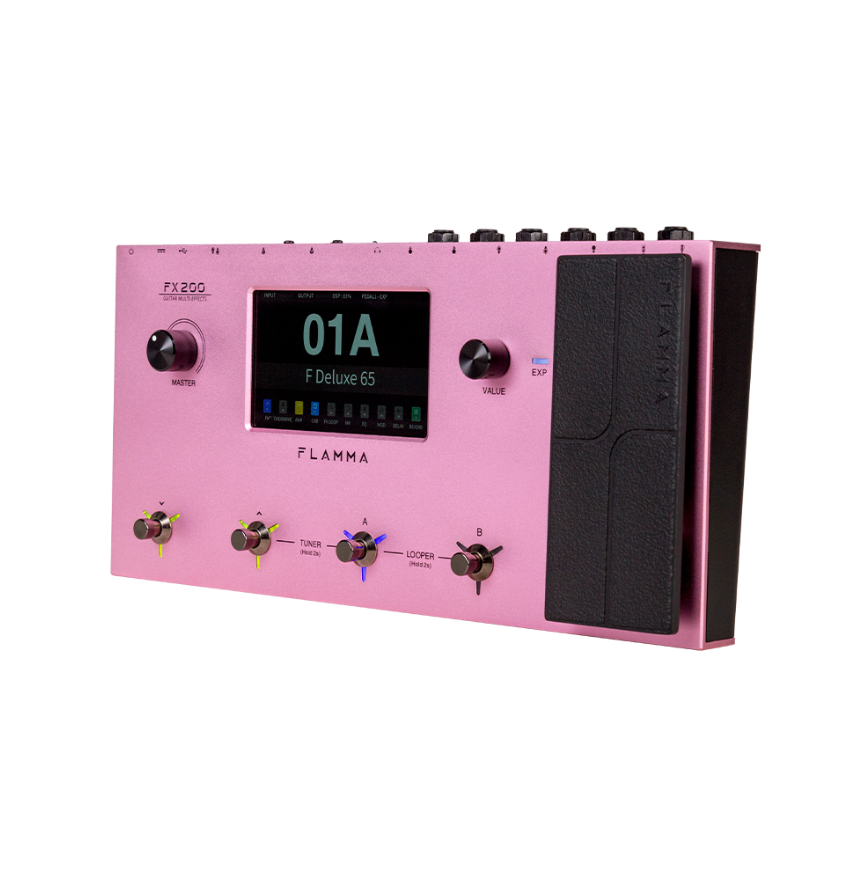

The FX200 features 4 footswitches for easier preset bank switching and effects control, as well as an all-new pedal design with premium grip and upgraded hinge functionality.

Programmable MIDI port for MIDI IN or MIDI OUT. Global EQ allows users to adjust the tone quickly according to different audio setups.


Impulse Response
File Format .WAV
Sample Rate 44.1kHz
Sample Accuracy 24 bit
Sample Point 1024 point

INPUTS & OUTPUTS
The I/O has been drastically expanded to support auxiliary in, expression pedal, stereo FX Loop, stereo out, headphones out, XLR out, 5 pin MIDI in/out, USB-C for PC connection, and a power switch is also included for convenience. The expanded I/O is aimed at covering guitarists in all situations, with or without an amp, on stage, in the studio, or on the road.

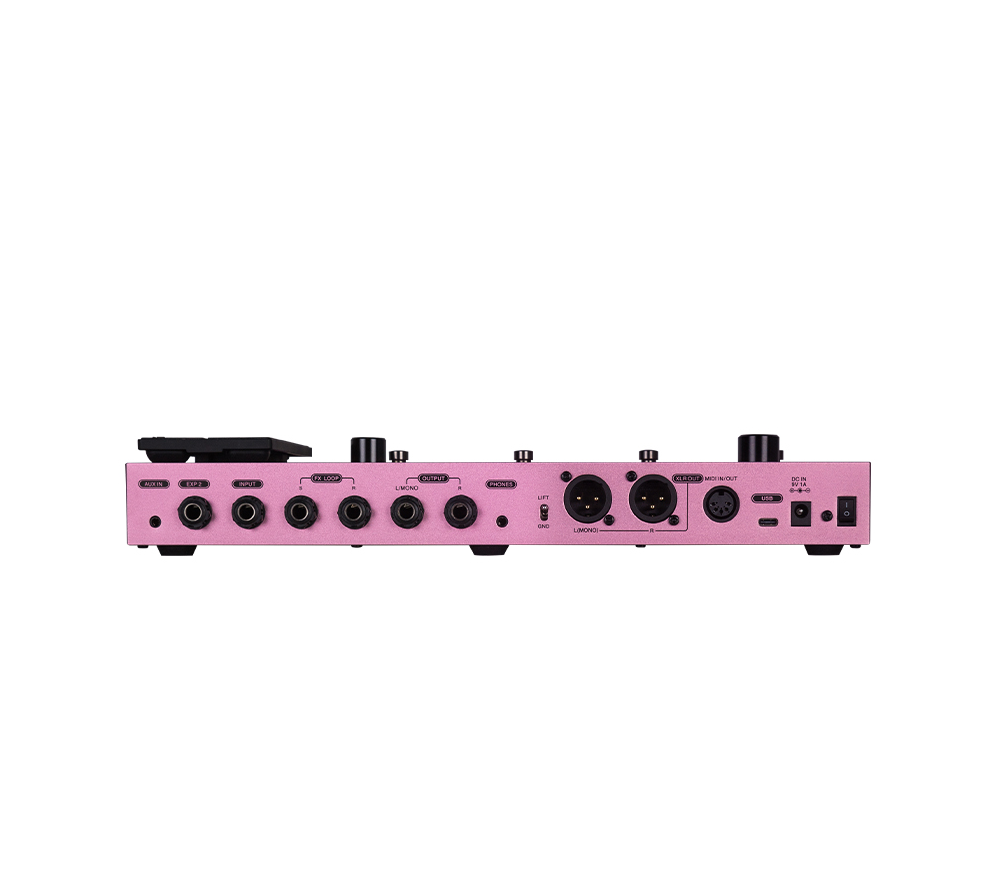

BACK PANEL GUIDE
AUXIN:1/8” stereo audio input jack, for connecting to the external audio device.
EXP2：1/4” stereo audio input jack, connect to external expression pedal (Notes: please use1/4” TRS cable.)
INPUT：1/4” mono audio input jack, connect to guitar or to the output of another pedal.
SEND：1/4” mono audio output jack of FX LOOP, connect to the input jack of external pedal or connect to the input of amplifier when using the four-cable method.
RETURN：1/4” mono audio input jack of the FX LOOP, connect to the output jack of an external pedal or connect to the SEND of an amplifier when using the four-cable method.
OUTPUT：1/4” stereo audio output jack for unbalanced signal, please connect to L(MONO)for mono audio setup.
PHONES：1/8” stereo headphone output.
GND/LIFT: Ground and lift switch for XLR output.
XLR OUT: XLR stereo audio output for balanced signal, please connect to L(MONO)for mono setup.
MIDI IN/MIDI OUT：5PIN MIDI port, can be set to MIDI IN or MIDI OUT.
USB： Type-C USB port, for connecting to a computer for preset management, importing IR file, firmware update, or using the unit as an audio interface.
DC IN： Powerport, recommend using the original power supply for it.
Power Switch: Toggle on/off the unit.

SPECIFICATION
AUX IN 1*1/8” unbalanced stereo input jack, impedance value 47kΩ
EXP 2 1*1/4” TRS jack，impedance value 10kΩ
INPUT 1*1/4” unbalanced mono input jack, impedance value 1MΩ
SEND 1*1/4” unbalanced mono output jack， impedance value 510Ω
RETURN 1*1/4” unbalanced mono input jack， impedance value 1MΩ
OUTPUT 2*1/4” unbalanced mono output jack， impedance value 600Ω
PHONES 1*1/8” stereo output jack， impedance value 47Ω
XLR OUT 2*balanced XLR output jack， impedance value 600Ω
MIDI 1*5-PIN MIDI female port
USB 1*USB TYPE-C port， for data transfer and USB AUDIO
DC IN DC 9V 1A, center negative
SNR A/D Converter 24-Bit 112 dB； D/A Converter 24-Bit 110 dB
Dimensions 13.5 x 6.7 x 2.2 IN ( D X W X H )
Weight 3.9 LB
Accessories Power supply, USB cable, Quick Guide

Kairon is the Official distributor of FLAMMA for the US.
All items have One Year Limited Factory Warranty
